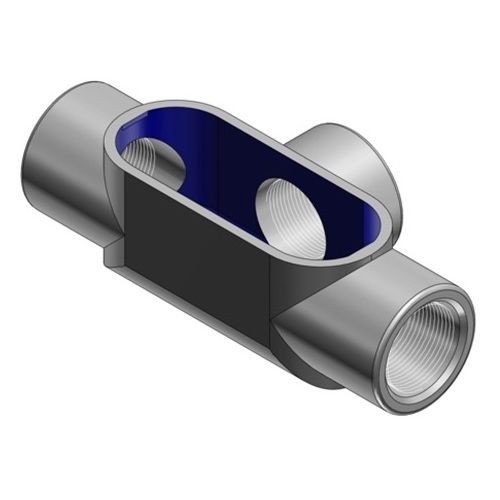

EATON Crouse-Hinds Condulet® T45 Type T Conduit Outlet Body, 1-1/4 in Hub, 5 Form, 33.1 cu-in Capacity, Die Cast Copper-Free Aluminum, Epoxy Powder Coated
EATON Crouse-Hinds Condulet® T45 Type T Conduit Outlet Body, 1-1/4 in Hub, 5 Form, 33.1 cu-in Capacity, Die Cast Copper-Free Aluminum, Epoxy Powder Coated
SKU: CHNT45
Manufacturer Part Number: T45
UPC: 784564140449
Features
- Die cast copper-free aluminum construction is lightweight and corrosion resistant for long, reliable service
- Epoxy powder coat finish provides additional corrosion resistance and an aesthetically pleasing appearance
Specification
| Hub Size | 1-1/4 in |
|---|---|
| Material | Die Cast Copper Free Aluminum |
| Number of Hubs | 3 |
| Type | Type T |
| Application | For rigid/IMC/EMT conduit, act as pull outlets for conductors being installed, provide openings for making splices and taps in conductors |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, UL File No. E-15022, cUL Listed, NEC/CEC Certified |
| Dimensions | 8.45 in L x 2.49 in W x 2.73 in H |
| Capacity | 33.1 |
| Color | Gray |
| Connection Type | Threaded/Set Screw |
| Finish | Epoxy Powder Painted |
| Form | 5 |
| Includes | Hubs, Tri Head Set Screws |
