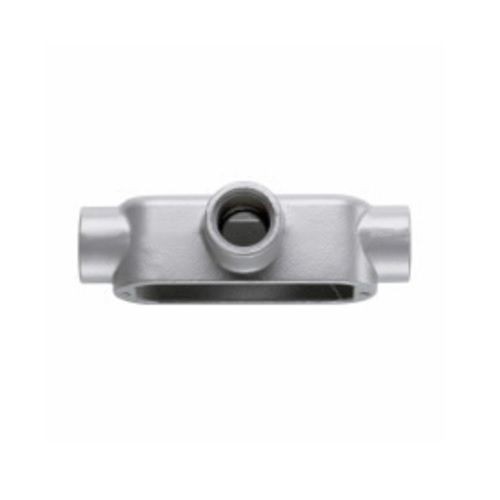

Crouse-Hinds Condulet® T50M Type T Conduit Outlet Body, 1/2 in Hub, 5 Form, 6 cu-in Capacity, Malleable Iron, Aluminum Acrylic Painted/Electro-Galvanized

Selected Crouse-Hinds Condulet® T50M Type T Conduit Outlet Body, 1/2 in Hub, 5 Form, 6 cu-in Capacity, Malleable Iron, Aluminum Acrylic Painted/Electro-Galvanized
Crouse-Hinds Condulet® T50M Type T Conduit Outlet Body, 1/2 in Hub, 5 Form, 6 cu-in Capacity, Malleable Iron, Aluminum Acrylic Painted/Electro-Galvanized

Documents

Short Description

Crouse-Hinds Form 5 conduit outlet bodies are ideal for threaded rigid/IMC conduit systems in commercial and industrial applications. Made from durable malleable iron, the line offers convenient features such as built-in rollers to facilitate wire pulling, solid neoprene gaskets that can be easily converted to the open type, integral bushings for protection of wire insulation and sheet steel or cast malleable iron covers with self-retaining stainless steel cover screws. The bodies and covers are interchangeable with Appleton® Form 35® and O-Z/Gedney® malleable iron conduit outlet bodies and are suitable for corrosive environments due to a tough electro galvanized finish. The offering includes all standard configurations and sizes from 1/2 to 4 in.

Features

  • Smooth and rounded integral bushings for protection of wire insulation
  • Malleable iron construction provides high impact resistance and durability
  • Electro-galvanized and aluminum acrylic paint finish for corrosion resistance and durability

Specification

Hub Size
1/2 in
Material
Malleable Iron
Number of Hubs
3
Type
Type T
Application
For rigid/IMC conduit, act as pull outlets for conductors being installed, provide openings for making splices and taps in conductors
Standard & Approvals
ARRA, Buy American Act, RoHS Compliant, UL 514B, cUL Listed, CSA C22.2 No.18, NEC/CEC Certified
Dimensions
5.38 in L x 2.05 in W x 1.34 in H
Capacity
6
Connection Type
Threaded
Finish
Electro-Galvanized/Aluminum Acrylic Painted
Form
5
