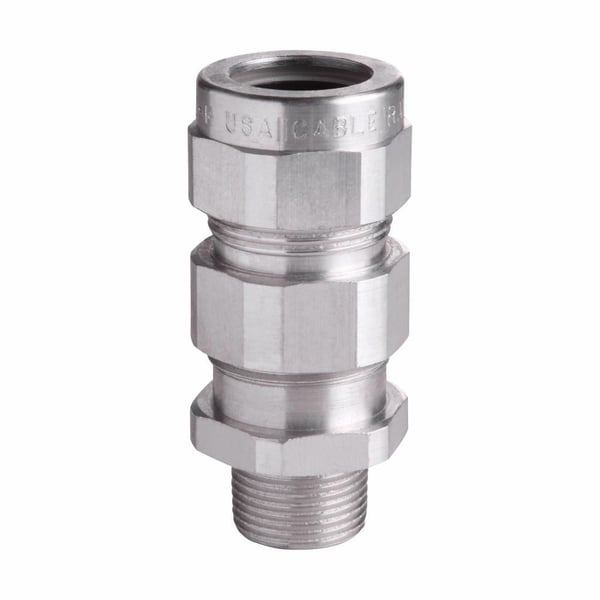

Crouse-Hinds TMC165 Through Bulkhead Cable Gland Connector, 1/2 in Trade, 0.49 to 0.781 in Cable Openings, Aluminum, Nickel Plated

Selected IDW IMAGE 3d18a07f5356330fb11e32fc9c0ab3f5b52f755ba3db83eb9c6292e6d0bce151
IDW IMAGE 3d18a07f5356330fb11e32fc9c0ab3f5b52f755ba3db83eb9c6292e6d0bce151

Documents

Short Description

Eaton's Crouse-Hinds® series is designed to the highest standard of safety and productivity to keep people safe and plants running reliably. The more demanding the environment, the likelier you are to find eaton products at the center of operations.

Features

  • Watertight seal on outer sheath of cable
  • Standard neoprene seal suitable for use in operating temperatures -25 to 60 deg c
  • Armored, teck armored and non-armored gland type
  • NEMA 4 and IP56

Specification

Finish
Nickel Plated
Material
Aluminum
Temperature Rating
-25 to 60 deg C
Connection Type
MNPT
Trade Size
1/2 in
Dimensions
1-3/8 in W
Cable Type
MC/TECK
Type
Through Bulkhead
Cable Openings
0.49 to 0.781 in
Series
TMC
