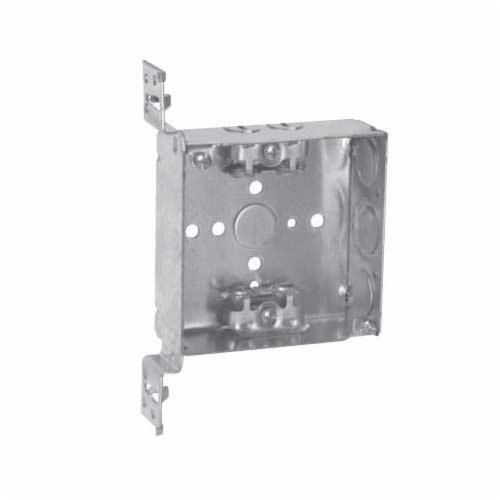

Crouse-Hinds Thepitt® TP459 Welded Outlet Box, Steel, 22 cu-in Capacity, 8 Knockouts, 4 in W x 1-1/2 in D x 4 in H

Selected TP459Crouse-Hinds Thepitt® TP459 Welded Outlet Box, Steel, 22 cu-in Capacity, 8 Knockouts, 4 in W x 1-1/2 in D x 4 in H
TP459Crouse-Hinds Thepitt® TP459 Welded Outlet Box, Steel, 22 cu-in Capacity, 8 Knockouts, 4 in W x 1-1/2 in D x 4 in H

Documents

Short Description

Eaton has assembled one of the most complete outlet box product lines in the business with its Crouse-Hinds series. We've been leading in quality and selection for decades and throughout the steel box offering, you will find innovative products and solutions that save labor, cut material costs and increase productivity.

Features

  • Welded construction
  • 89 lb per 100 Weight
  • For use with armored/metal clad cable
  • Side knockouts: (2) 1/2 in, (1) 1/2 in and 3/4 in E
  • Bottom knockouts: (1) 1/2 in
  • Commercial product

Specification

Knockout Size
1/2 and 3/4 in
Material
Steel
Minimum Order Qty
1
Order Interval
1
Cable Entry
Knockouts
Color
Natural
Shape
Square
Standard & Approvals
UL Listed, RoHS Compliant
Application
For exposed work application providing an easy method for the installation of electrical device (switches, receptacles, fans, lights)
Series
TP
Dimensions
4 in W x 1-1/2 in D x 4 in H
Catalog ID
THETP459
Capacity
22 cu-in
Number of Knockouts
8
