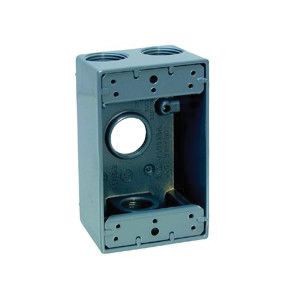

Crouse-Hinds TP7074 Weatherproof Outlet Box, Die-Cast Aluminum, 24 cu-in Capacity, 1 Gangs, 3 Outlets, 3 Knockouts, 2-7/8 in W x 2-21/32 in D x 4-4/16 in H

Selected TP7078Crouse-Hinds TP7074 Weatherproof Outlet Box, Die-Cast Aluminum, 24 cu-in Capacity, 1 Gangs, 3 Outlets, 3 Knockouts, 2-7/8 in W x 2-21/32 in D x 4-4/16 in H
TP7078Crouse-Hinds TP7074 Weatherproof Outlet Box, Die-Cast Aluminum, 24 cu-in Capacity, 1 Gangs, 3 Outlets, 3 Knockouts, 2-7/8 in W x 2-21/32 in D x 4-4/16 in H

Short Description

Cooper Crouse-Hinds weatherproof products are manufactured in compliance with U.L. requirements for weatherproof boxes and covers and meet U.L. standard #514A. cooper CrouseHinds lighting products comply with the U.L. requirements of standard UL 1598 and are suitable for wet locations. cooper Crouse-Hinds weatherproof products are rust and corrosion resistant made of rugged die-cast construction. cooper Crouse-Hinds weatherproof products are provided with necessary gaskets, plugs and screws, making installation trouble free. all products are powder coat painted and various colors are available. cooper Crouse-Hinds weatherproof boxes and covers are individually shrink-wrapped. cooper Crouse-Hinds weatherproof cast aluminum boxes are lugged except where noted and are provided with plugs. the self-closing weatherproof covers are zinc die-cast. the weatherproof lamp holders have porcelain sockets and are rated up to 150 watts and have 81/2 wire leads. Vaporite fixtures are die-cast aluminum and the screw on guards are die-cast zinc, with Allen-Head set screws for locking in place. the fixtures also have a neoprene gasket and porcelain clip-in socket.

Features

  • Durable die-cast aluminum construction for long product life
  • Powder paint finish for corrosive environments
  • Boxes supplied with required installation hardware
  • Tapered NPT hubs
  • Construction corrosive resistant
  • (1) back and (1) each end cable entry

Specification

Hub Size
1/2 in
Material
Die Cast Aluminum
Mounting Type
Surface
Number of Gangs
1
Number of Outlets
3
Minimum Order Qty
1
Order Interval
1
Cable Entry
Back/Each End
Capacity
24 cu-in
Catalog ID
THETP7074
Color
Bronze
Dimensions
2-7/8 in W x 2-21/32 in D x 4-4/16 in H
Finish
Powder Coated
Shape
Rectangular
Standard & Approvals
CSA C22.2 No 18.1-04, cUL Listed, UL 514A/E15022
Application
For Wet Location
