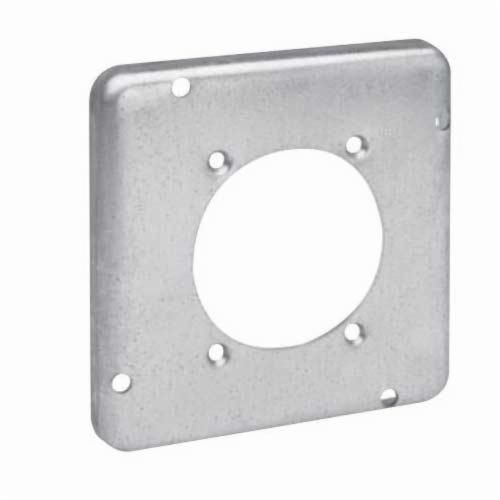

Crouse-Hinds Thepitt® TP734 Box Cover, 4-11/16 in L x 4-11/16 in W, Raised Surface Cover, Steel

Selected TP734Crouse-Hinds Thepitt® TP734 Box Cover, 4-11/16 in L x 4-11/16 in W, Raised Surface Cover, Steel
TP734Crouse-Hinds Thepitt® TP734 Box Cover, 4-11/16 in L x 4-11/16 in W, Raised Surface Cover, Steel

Documents

Short Description

Cooper Crouse-Hinds 4-11/16 in boxes are designed for use with conduit in commercial and industrial applications. They are utilized for the quick and easy installation of switches, devices and in ceilings for the installation of lighting fixtures. The larger box size provides increased capacity and wiring room. Available in 1-1/2 in and 2-1/8 in depths, these boxes come with dedicated knockouts from 1/2 in to 1-1/4 in or combination 1/2 in and 3/4 in concentric. The labor saving raised ground screw dimple in the bottom of the welded box provides for quick and easy installation of a ground screw, eliminating the need in surface mounted applications to clip a protruding ground screw or drill a pilot hole in the mounting surface.

Features

  • 1/2 in raise

Specification

Length
4-11/16 in
Material
Steel
Shape
Square
Width
4-11/16 in
Standard & Approvals
UL Listed, RoHS Compliant
Color
Natural
Knockout Size
2.48 in
Capacity
9 cu-in
Application
Power Outlet
