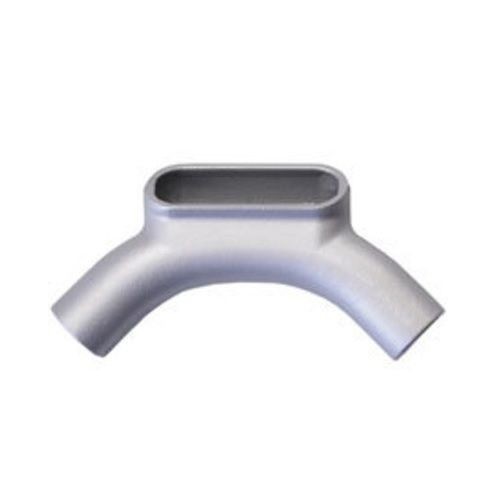

Crouse-Hinds Condulet® U67 Universal Conduit Outlet Body, U Body, 2 in Hub, 7 Form, Feraloy® Iron Alloy

Selected U67Crouse-Hinds Condulet® U67 Universal Conduit Outlet Body, U Body, 2 in Hub, 7 Form, Feraloy® Iron Alloy
U67Crouse-Hinds Condulet® U67 Universal Conduit Outlet Body, U Body, 2 in Hub, 7 Form, Feraloy® Iron Alloy

Documents

Short Description

The Type U Condulet® is a legacy Crouse-Hinds series fitting which has been redesigned to address current needs in industrial applications. Its unique design features deliver enhanced pulling speed, greater internal capacity over a standard Condulet®, and a 4-to-1 SKU reduction, simplifying inventory for distribution and contractors at the job site.

Features

  • A smooth pulling surface, mimicking the sweeping bend of a factory 90 elbow, easing the burden of hand and mechanical wire pulling to deliver faster wire pulling
  • An angled cover opening to address system access for splicing and future maintenance in corners and access points where installation of a LL, LR, lb or factory 90 with a C fitting is not considered ideal
  • Greater internal capacity than a standard Condulet®, providing a 40% wire fill rating and listing of the product as an enclosure
  • Sweeping bend radius

Specification

Hub Size
2 in
Material
Feraloy® Iron Alloy
Mounting Type
Surface
Number of Hubs
2
Minimum Order Qty
1
Order Interval
1
Body Style
U-Shape
Catalog ID
CHNU67
Color
Gray
Connection Type
Threaded
Dimensions
17-5/16 in L x 3-5/8 in W x 8-5/8 in H
Enclosure
NEMA 3/4
Finish
Electro-Galvanized/Aluminum Acrylic Painted
Form
7
Type
Universal
Application
Rigid Conduit
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, UL 514A/514B, CSA C22.2 No. 18, UL 50E Dust-tight Type 12
