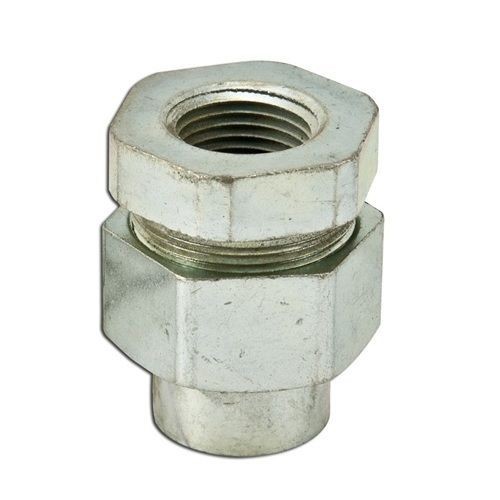

Crouse-Hinds UNF305 Explosionproof Conduit Union, 1 in, Steel, Electro-Galvanized

Selected Crouse-Hinds UNF305 Explosionproof Conduit Union, 1 in, Steel, Electro-Galvanized
Crouse-Hinds UNF305 Explosionproof Conduit Union, 1 in, Steel, Electro-Galvanized

Short Description

EATON's Crouse-Hinds Business is the world's leading provider of electrical and instrumentation products for harsh and hazardous environments. Our products perform to the highest standard of safety and reliability, keeping people safe and plants running. The more demanding the environment, the likelier you are to find our products at the very center of operations.

Features

  • Compact design which permits assembly with a minimum of clearance to other adjacent conduit and/or equipment
  • Strong and durable construction UNA unions
  • Unions are installed in threaded thickwall conduit systems
  • UNF female union NPT threaded type
  • Electrogalvanized with chromate treatment

Specification

Material
Steel
Size
1 in
Suitable For Use With
Rigid Conduit
Application
For connect conduit to conduit, or to provide a means for future modification of the conduit system
Standard & Approvals
CSA C22.2 Certified and UL 886 Listed, Class I Div 1 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III Enclosure, RoHS Complaint
Dimensions
1-7/8 in OD x 2 in L
Finish
Electro-Galvanized
