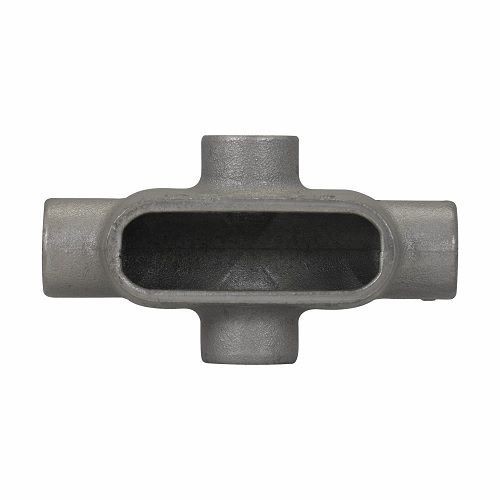

EATON Crouse-Hinds Condulet® X37 Type X Conduit Outlet Body, 1 in Hub, 7 Form, Feraloy® Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized
EATON Crouse-Hinds Condulet® X37 Type X Conduit Outlet Body, 1 in Hub, 7 Form, Feraloy® Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized
SKU: CHNX37
Manufacturer Part Number: X37
UPC: 782274746104
Documents
Features
- Form 7 Condulet® outlet bodies approach conduit in size for neat, compact installations
- Conduit hubs have tapered threads and feature integral bushings for protection of wire insulation
- Form 7 has exclusive snaptight and wedgenut cover attachment to provide clear, unobstructed cover opening
Specification
| Hub Size | 1 in |
|---|---|
| Material | Feraloy® Iron Alloy |
| Number of Hubs | 4 |
| Type | Type X |
| Application | For rigid conduit, act as pull outlets for conductors being installed, provide openings for making splices and taps in conductors |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, UL 514B, CSA C22.2 No. 18, Federal Spec W-C-586D, NEC/CEC Certified |
| Dimensions | 7-1/4 in L x 4 in W x 2-1/4 in H |
| Connection Type | Threaded/Set Screw |
| Finish | Electro-Galvanized/Aluminum Acrylic Painted |
| Form | 7 |
