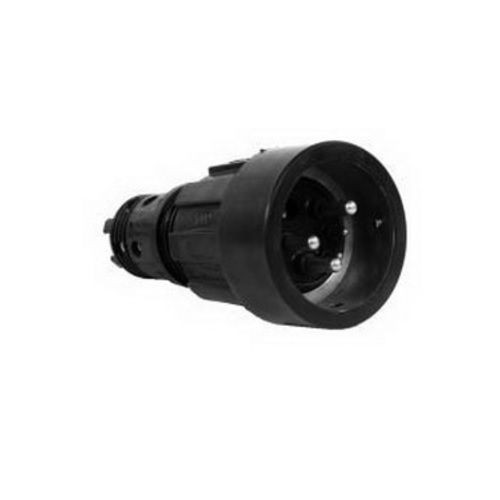

Crouse-Hinds Quik-Loc™ X8343-5D Male Plug, 600 VAC/VDC, 75 A, 3 W Power Rating
Crouse-Hinds Quik-Loc™ X8343-5D Male Plug, 600 VAC/VDC, 75 A, 3 W Power Rating
SKU: CHNX8343-5D
Manufacturer Part Number: X8343-5D
UPC: 662275156037
Documents
Short Description
Features
- Watertight
- Flexible grommet adapts sleeve to varying cable diameters
- One-piece neoprene protective sleeve seals wiring area from dirt, grit, and moisture
- Sturdy neoprene covered metal couplings withstand rough handling and abuse
- Pin and groove threads engage or disengage in just 3/4 turn, wont cross thread or burr. (Largest model has double pitch acme thread)
- Nonslipping, worm-gear driven clamps assure a watertight fit between protective sleeve, terminal area and cable
- Stainless steel components resist corrosion
- Copper alloy contacts provide low resistance electrical connection, firmly bonded in molded body, wont jar loose
- Quik-Loc male connector provide electrical, mechanical and environmental protection for 600 volt AC and DC applications
- For AC 3 power, 1 ground with pilot circuit contact
- 2200 V dielectric voltage
- 8 AWG
- Set screw terminal
- EPDM rubber
Specification
| Material | Rubber |
|---|---|
| NEMA Rating | NEMA 3R |
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Temperature Rating | -40 to 90 deg C |
| Terminal Type | Screw |
| Voltage Rating | 600 VAC/VDC |
| Amperage Rating | 75 A |
| Dimensions | 4 in Dia x 13-7/16 in L |
| Standard & Approvals | MSHA Approved, RoHS Compliant |
| Application | For drills, slusher hoists, shuttle cars, motors, conveyors, heavy equipment, power distribution, ship-to-shore power, submersible pumps, mining skids and longwalls |
| Series | Quik-Loc |
