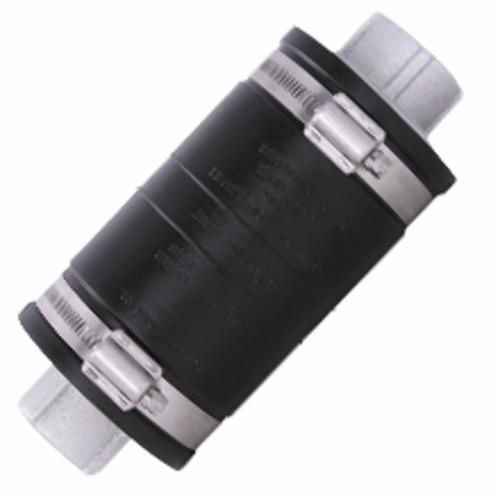

Crouse-Hinds XD6 Corrosion Resistant Watertight Deflection Coupling, 2 in, For Use With Rigid/IMC/PVC Conduit, Feraloy® Iron Alloy, Electro-Galvanized
Crouse-Hinds XD6 Corrosion Resistant Watertight Deflection Coupling, 2 in, For Use With Rigid/IMC/PVC Conduit, Feraloy® Iron Alloy, Electro-Galvanized
SKU: CHNXD6
Manufacturer Part Number: XD6
UPC: 782274122960
Documents
Short Description
Features
- Angular misalignment of the axes of the coupled conduit runs in any direction to 30 deg
- Flexible, watertight connections that protect rigid/IMC or PVC conduit wiring systems from damage caused by axial expansion and contraction up to 3/4 in and angular and parallel misalignment
- Inner sleeve maintains constant ID in any position and provides a smooth insulated wireway for protection of wire insulation
- Watertight flexible-black neoprene outer jacket is corrosion resistant and protects the grounding strap and the attachment points of the hubs
- Tinned copper flexible braid bonding straps assure bonding continuity
- Stainless steel jacket clamps for strength and corrosion resistance
- Standard tapered electrical threads fit standard rigid conduit
- Integral hub bushing protects insulation of conductor
- Molded neoprene outer jacket
- Stainless steel jacket clamps
- Natural brown molded plastic inner sleeve
- Braided tinned copper bonding strap
Specification
| Material | Feraloy® Iron Alloy |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Finish | Electro-Galvanized |
| Size | 2 in |
| Dimensions | 9 in Dia x 8-3/8 in L |
| Color | Black/Brown |
| Catalog ID | CHNXD6 |
| Angle | 30 |
| Standard & Approvals | ARRA, Buy American Act and RoHS Compliant, UL 514B, CSA 22.2 No. 18 3-12 |
| Application | Underground Conduit Feeder Runs, Bridges, Marinas, Docks, Piers and Wet Locations |
| Type | Corrosion Resistant Watertight |
| Suitable For Use With | Rigid/IMC/PVC Conduit |
| Series | XD Series |
