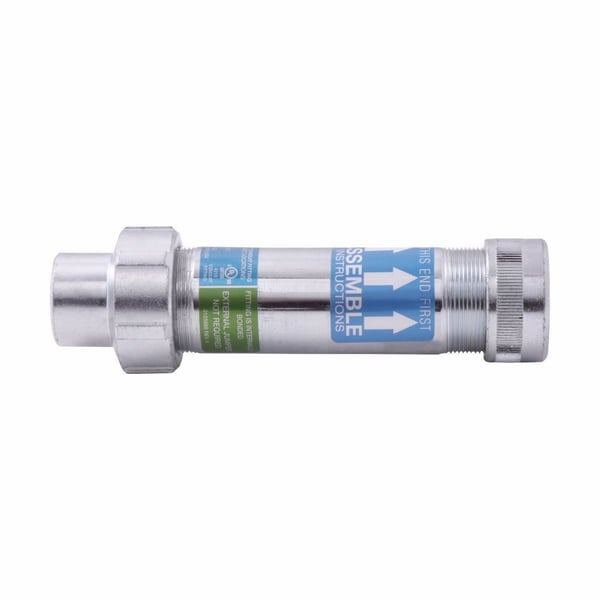

EATON Crouse-Hinds XJG64 SA Conduit Expansion Coupling, 2 in, For Use With Rigid Metal/IMC Conduit, Copper-Free Aluminum, Natural
EATON Crouse-Hinds XJG64 SA Conduit Expansion Coupling, 2 in, For Use With Rigid Metal/IMC Conduit, Copper-Free Aluminum, Natural
SKU: CHNXJG64-SA
Manufacturer Part Number: XJG64 SA
UPC: 782274915920
Documents
Features
- Weatherproof and approved for use indoor or outdoor without an external bonding jumper
- Internal bonding springs and metallic bushings create high integrity internal ground connection and eliminate need for external bonding jumpers and clamps
- Patented design
- 4 in maximum conduit movement
- Electro-galvanized and aluminum painted Feraloy® iron alloy reducer, gland nut and bushing
- PTFE composite packing
- Electro-galvanized steel washer
- Vellum gasket
- Electro-galvanized phosphor bronze ground spring
- Braided tinned copper ground strap
- Electro-galvanized malleable iron U-bolt
- XJG EMT expansion couplings provide flexible, watertight connections that protect EMT conduit wiring systems from damage caused by movement
Specification
| Material | Copper-Free Aluminum |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | CHNXJG64-SA |
| Dimensions | 4-3/4 in Dia x 8-1/4 in L |
| Finish | Natural |
| Series | XJG |
| Size | 2 in |
| Suitable For Use With | Rigid Metal/IMC Conduit |
| Application | Commercial, Institutional Buildings, Structures, Wet Location, Indoor and Outdoor Applications |
| Standard & Approvals | UL 514B, CSA C22.2 No. 18 3-12, NEMA FB-1 |
