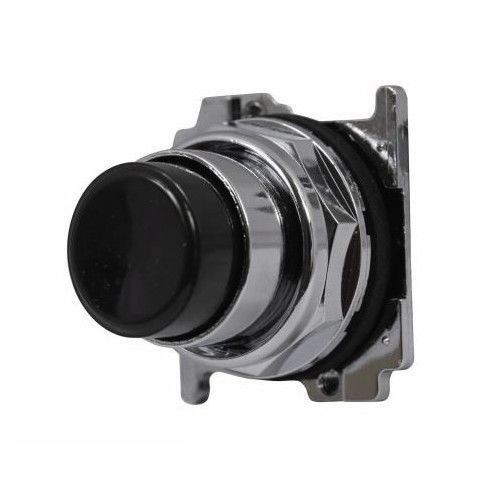

EATON 10250T111 Heavy Duty Oil/Watertight Non-illuminated Pushbutton Operator, 30.5 mm, Black
EATON 10250T111 Heavy Duty Oil/Watertight Non-illuminated Pushbutton Operator, 30.5 mm, Black
SKU: C-H10250T111
Manufacturer Part Number: 10250T111
UPC: 782113207131
Features
- Heavy-duty zinc die-cast construction
- Enclosed silver contacts with reliability nibs
- Diaphragm seals with drainage holes
- Grounding nibs on the operator casing
- Reliability nibs improve contact reliability even under dry circuit and fine dust conditions
- Drainage holes prevent buildup of liquid inside the operator which can prevent operation in freezing environments
- Grounding nibs bit through paint and other coatings to provide secure ground
- Slow make and break
- All normally closed contacts have positive opening operation, i.e., normally closed contacts are forced open in the event of contact weld or spring breakage
- 6000 operations/hr
- Life of 1000000 operations
- -40 to 176 deg F storage temperature
- 6562 ft altitude
- Extended operating cap
- 1 to 150 deg F operating temperature
Specification
| Material | Die-Cast Zinc |
|---|---|
| Operator Type | Flush/Momentary |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Black |
| Enclosure Type | NEMA 3/3R/4/4X/12/13/IP65 |
| Finish | Chrome Plated |
| Series | 10250T |
| Size | 30.5 mm |
| Temperature Rating | 1 to 150 deg F |
| Type | Heavy Duty Oiltight/Watertight |
| Standard & Approvals | CE EN60947-5-1, UL 508/131568, CSA C22.2 No 14/LR68551, UL (NEMA) Type 1/2/3/3R/3S/4/4X/12/13, IEC IP65 |
| Contact Rating | 660 VAC/VDC 10 A |
| Catalog ID | C-H10250T111 |
| Bezel/Housing | Metal/Chrome |
