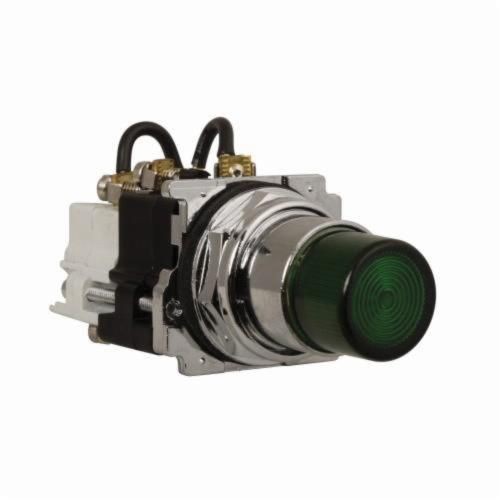

EATON 10250T297LGP2A 10250T Full Voltage Heavy Duty Oiltight Watertight PresTest Actuator Indicating Light, 120 VAC, 0.5 A, Fresnel Lens, Panel Mount

Selected 10250T297LGP2AEATON 10250T297LGP2A 10250T Full Voltage Heavy Duty Oiltight Watertight PresTest Actuator Indicating Light, 120 VAC, 0.5 A, Fresnel Lens, Panel Mount
10250T297LGP2AEATON 10250T297LGP2A 10250T Full Voltage Heavy Duty Oiltight Watertight PresTest Actuator Indicating Light, 120 VAC, 0.5 A, Fresnel Lens, Panel Mount

Documents

Short Description

Eaton's 10250T line of 30.5 mm pushbuttons features a heavy duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.

Features

  • Contact blocks feature enclosed silver contacts with pointed reliability nibs
  • To ensure reliable switching, these nibs bite through oxide, which can form on silver contacts, eliminating the need for expensive logic level blocks for most applications
  • Fresnel plastic green round lens
  • Bayonet base lamp
  • Full voltage type
  • 2.6 in L x 2.2 in W x 4.7 in H
  • Pressure plate terminal connection
  • Watertight/Oiltight

Specification

Lamp Type
Incandescent/LED
Material
Die Cast Zinc
Operator Type
Button/Prestest
Minimum Order Qty
1
Order Interval
1
Bezel/Housing
Chrome Plated Metal
Catalog ID
C-H10250T297LGP2A
Enclosure Type
NEMA 3/3R/4/4X/12/13/IP65
Finish
Chrome Plated
Series
10250T
Size
30.5 mm
Type
Heavy Duty
Voltage Rating
120 VAC
Application
Automation and Logic Control Equipment
Standard & Approvals
CE, UL Listed, CSA Certified
