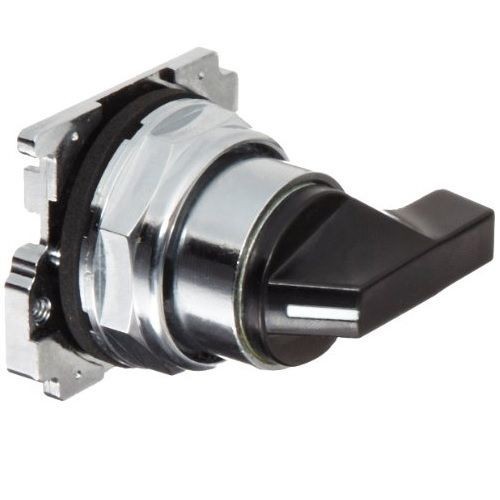

EATON 10250T3011 Heavy Duty Oiltight/Watertight Pushbutton Non-Illuminated Selector Switch Operator, 30.5 mm, Lever Operator, 2 Positions, Black

Selected 10250T3011EATON 10250T3011 Heavy Duty Oiltight/Watertight Pushbutton Non-Illuminated Selector Switch Operator, 30.5 mm, Lever Operator, 2 Positions, Black
10250T3011EATON 10250T3011 Heavy Duty Oiltight/Watertight Pushbutton Non-Illuminated Selector Switch Operator, 30.5 mm, Lever Operator, 2 Positions, Black

Documents

Short Description

Eaton's 10250T line of 30.5 mm pushbuttons features a heavy duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.

Features

  • Watertight/oiltight
  • Non-Illuminated
  • Front-of-panel drainage holes
  • Grounding nibs on the operator casing
  • Solid thermosetting cathodic epoxy coating on E34
  • Drainage holes prevent buildup of liquid inside the operator which can prevent operation in freezing environments
  • Grounding nibs bite through paint and other coatings to provide secure ground
  • Earth terminal provides additional grounding point and allows for daisy chain grounding
  • 60 deg throw type

Specification

Material
Die Cast Zinc
Mounting Type
Surface
Number of Positions
2
Operator Type
Lever
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=SEpqN8QSBak&feature=youtu.be
Bezel/Housing
Metal
Cam Code
1
Catalog ID
C-H10250T3011
Color
Black
Contact Mode
Maintained
Enclosure Type
NEMA 3/3R/4/4X/12/13/IP65
Finish
Chrome
Series
10250T
Size
30.5 mm
Throw
60 deg Left-Right
Type
Heavy Duty
Voltage Rating
600 VAC
Standard & Approvals
UL 508 E131568, 1604 E10323, C22.2 No.14 LR 68551, 213-M1987 LR 20713
