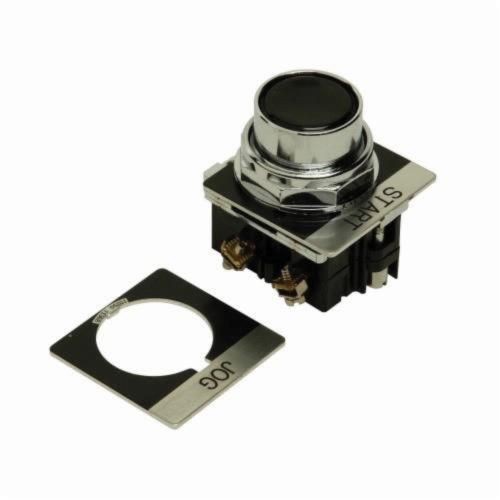

EATON 10250T30B-POP Heavy Duty Oil/Watertight Standard Square Non-Illuminated Pushbutton, 30.5 mm, 1NO-1NC Contact, Black

Selected 10250T30B-POPEATON 10250T30B-POP Heavy Duty Oil/Watertight Standard Square Non-Illuminated Pushbutton, 30.5 mm, 1NO-1NC Contact, Black
10250T30B-POPEATON 10250T30B-POP Heavy Duty Oil/Watertight Standard Square Non-Illuminated Pushbutton, 30.5 mm, 1NO-1NC Contact, Black

Documents

Short Description

Eaton's 10250T line of 30.5 mm pushbuttons features a heavy duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.

Features

  • Eaton's contact blocks feature enclosed silver contacts with pointed reliability nibs
  • Diaphragm seals with drainage holes
  • Grounding nibs on the operator casing
  • Reliability nibs improve contact reliability even under dry circuit and fine dust conditions
  • Drainage holes prevent buildup of liquid inside the operator which can prevent operation in freezing environments
  • Grounding nibs bite through paint and other coatings to provide secure ground
  • Slow make and break contact operation (positive opening NC contacts) for improved safety
  • Plastic actuator
  • 7 in L x 6 in W x 3 in H
  • Standard square size
  • 10 A at 600 VAC, 5 A at 250 VDC contact rating
  • Black actuator
  • Round metal bezel/housing

Specification

Legend Color
Black
Material
Die Cast Zinc
Operator Type
Flush
Minimum Order Qty
1
Order Interval
1
Bezel/Housing
Metal
Color
Black
Contact Configuration
1NO-1NC
Contact Mode
Momentary
Contact Rating
10 A at 600 VAC
Enclosure Type
NEMA 3/3R/4/4X/12/13
Finish
Chrome Plated
Series
10250T
Size
30.5 mm
Type
Heavy Duty
Standard & Approvals
CE EN60947-5-1, CSA C22.2, UL 508
Terminal
Standard Screw
Catalog ID
C-H10250T30B-POP
Legend
START and JOG
