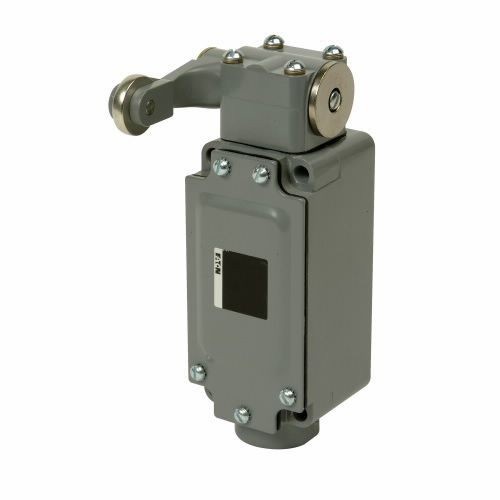

EATON 10316H18 Type F Special Purpose Limit Switch, 120 VAC/VDC, 2.2/6/60 A, Roller Lever/Side Rotary Actuator, 1NO-1NC Contact, 1 Poles
EATON 10316H18 Type F Special Purpose Limit Switch, 120 VAC/VDC, 2.2/6/60 A, Roller Lever/Side Rotary Actuator, 1NO-1NC Contact, 1 Poles
SKU: C-H10316H18
Manufacturer Part Number: 10316H18
UPC: 782113204802
Features
- Side rotary, type F switch
- 40 deg travel to operate contacts
- 35 deg travel to reset contacts
- 65 deg total travel
- 25 deg over travel
- 1/2 in NPT conduit entrance
- 60 A break 6 A at 120 VAC/break 2.2 a DC
- AC: make 60 A break 6 A at 120 VAC, DC: Break 2.2 A contact rating
Specification
| Material | Die Cast Zinc |
|---|---|
| Number Of Poles | 1 |
| Operating Temperature | 0 to 180 deg F |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Action | Spring Return |
| Actuator | Roller Lever |
| Catalog ID | C-H10316H18 |
| Connection Type | Threaded |
| Contact Configuration | 1NO-1NC |
| Contact Rating | 60/6/2.2 A |
| Enclosure Type | NEMA 4 |
| Voltage Rating | 120 VAC/VDC |
| Standard & Approvals | UL Listed |
| Application | For variety of special purpose industrial applications |
| Type | Type F Special Purpose Roller Lever |
| Size | 2.69 in L x 3.66 in W x 6.88 in H |
