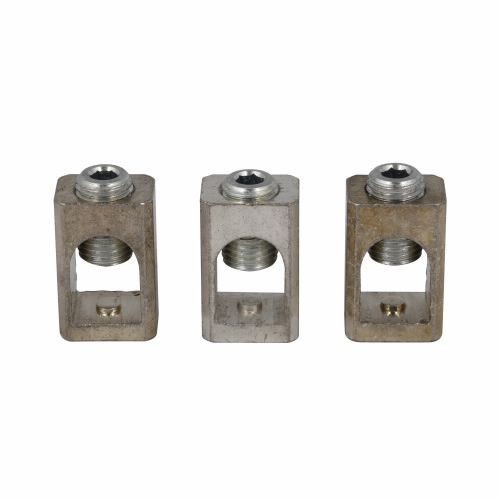

EATON 3TA225FD Pressure Standard Line and Load Terminal, 4 to 4/0 AWG, For Use With C Series 225 A HFDDC-Frame Molded Case Circuit Breaker

Selected 3TA225FDEATON 3TA225FD Pressure Standard Line and Load Terminal, 4 to 4/0 AWG, For Use With C Series 225 A HFDDC-Frame Molded Case Circuit Breaker
3TA225FDEATON 3TA225FD Pressure Standard Line and Load Terminal, 4 to 4/0 AWG, For Use With C Series 225 A HFDDC-Frame Molded Case Circuit Breaker

Documents

Short Description

Eaton’s Series C Molded Case Circuit Breakers are used in panelboard, switchboard, motor control center, and busway applications for dependable branch circuit protection. They have proven user acceptance for over 20 years and meet or exceed North American standards. Available for systems up to 600 VAC or 250 VDC with current ratings up to 2500A.

Specification

Height
1/2 in
Length
2.2 in
Material
Aluminum
Suitable For Use With
C Series 225 A HFDDC-Frame Molded Case Circuit Breaker
Type
Pressure Standard
Width
1.2 in
Application
Circuit Protection Applications
Standard & Approvals
UL Listed
Conductor Range
4 to 4/0 AWG
