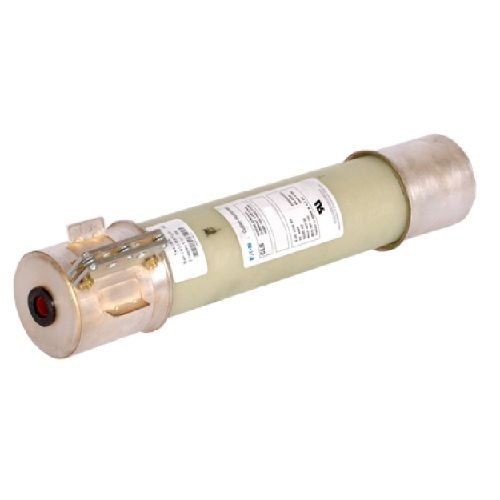

EATON Ampgard® 5ACLS-6R ACLS Medium Voltage Single Barrel Current-Limiting Fuse, 170 A, 4.8 kV, 50 kA Interrupt, Class: R

Selected EATON Ampgard® 5ACLS-6R ACLS Medium Voltage Single Barrel Current-Limiting Fuse, 170 A, 4.8 kV, 50 kA Interrupt, Class: R
EATON Ampgard® 5ACLS-6R ACLS Medium Voltage Single Barrel Current-Limiting Fuse, 170 A, 4.8 kV, 50 kA Interrupt, Class: R

Documents

Short Description

Eaton's CLS current limiting backup fuses are intended for indoor use. They are typically used in conjunction with high voltage motor starters to provide short circuit protection for individual motors.

Features

  • Current limiting R-Rated fuses are physically dimensioned for easy installation in existing hardware
  • These fuses are in a self-contained, non-venting package for installation indoors or outdoors in an enclosure
  • Single barrel, 6R designation
  • 5.5 kV Maximum/4.8 kV Nominal voltage rating

Specification

Interrupt Rating
50 kA
Minimum Order Qty
1
Order Interval
1
Type
Type CLS Medium Voltage
Application
Motors and Controllers
Standard & Approvals
UL Guide No. MSSS2, UL File No. E96676, IEEE C37.41
Voltage Rating
4.8 kV
Class
R
Catalog ID
C-H5ACLS-6R
Body Size
3 in Dia x 15.9 in L
Amperage Rating
170 A
