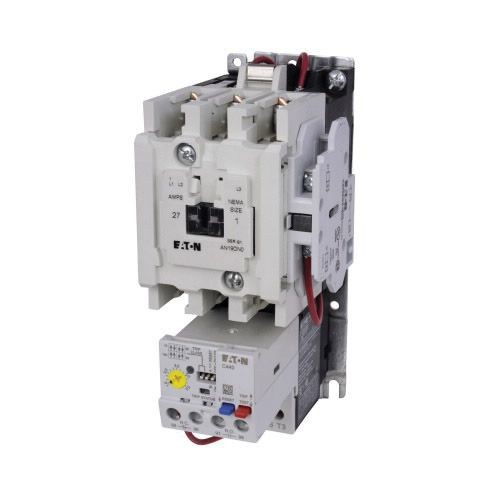

EATON AN19DN0A5E045 Freedom Full Voltage Open NEMA Starter With C440 EOLR Standard Feature Set, SEL Reset, SEL Class (10a, 10, 20, 30), 110/120 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 1 Enclosure

Selected AN19DN0A5E045EATON AN19DN0A5E045 Freedom Full Voltage Open NEMA Starter With C440 EOLR Standard Feature Set, SEL Reset, SEL Class (10a, 10, 20, 30), 110/120 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 1 Enclosure
AN19DN0A5E045EATON AN19DN0A5E045 Freedom Full Voltage Open NEMA Starter With C440 EOLR Standard Feature Set, SEL Reset, SEL Class (10a, 10, 20, 30), 110/120 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 1 Enclosure

Documents

Features

  • Horizontal mounting
  • Standard feature set, SEL reset, SEL class (10a, 10, 20, 30)
  • Screw type power terminals have captive, backed-out self-lifting pressure plates with screws result in reduced wiring time
  • Accessible terminals allow for ease of use and are convenient for simple wiring
  • Top located contactor magnet coils have three terminals which permit either top or diagonal wiring and are readily accessible, for easy replacement without changing wiring layout

Specification

Frequency Rating
50/60 Hz
Full Load Current Rating
9 to 45 A
Motor Power
10 hp
Number Of Poles
3
Series
Freedom
Size
NEMA 1
Voltage Rating
600 VAC
Amperage Rating
27 A
Coil Voltage
110/120 VAC
Enclosure Type
NEMA 1
Phase
1/3/2025 12:00:00 AM
Dimensions
4.98 x 2.6 x 7.1 in
Type
Non-Reversing
