EATON QuickLag® BAB2030S Type BAB Miniature Circuit Breaker, 120/240 VAC, 30 A, 10 kA Interrupt, 2 Poles, Non-Interchangeable/Shunt/Thermal Magnetic Trip

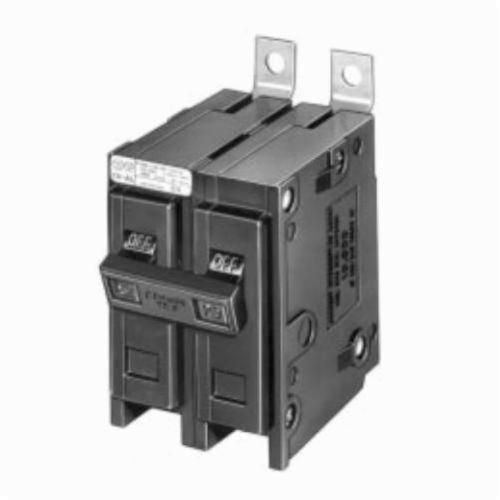

Selected BAB2090EATON QuickLag® BAB2045 Type BAB Miniature Circuit Breaker, 120/240 VAC, 45 A, 10 kA Interrupt, 2 Poles, Non-Interchangeable Thermal Magnetic Trip
BAB2090EATON QuickLag® BAB2045 Type BAB Miniature Circuit Breaker, 120/240 VAC, 45 A, 10 kA Interrupt, 2 Poles, Non-Interchangeable Thermal Magnetic Trip

Documents

Short Description

Eaton’s bolt-on miniature circuit breakers offer superior protection for panelboards. They are also switching duty rated for 120 VAC fluorescent light applications. Easy to securely install. Choose from one-, two-, or three-pole designs. Built and listed to UL 489. All products 15–100A are HACR rated. Choose from Bolt-On Types BAB, QBHW, HBAX, HBAW.

Features

  • Flexible power feed connection (wire size and position) offers product uniformity as well as ease of installation
  • Field-mountable accessories make installation and on-site custom configuration easy
  • Compact designs available to minimize panel size
  • Fixed instantaneous trip
  • With 120 VAC shunt trip
  • Cu/Al wire
  • Non-interchangeable trip

Specification

Interrupt Rating
10 kA
Mounting Type
Bolt-On
Number Of Poles
2
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=ZBPV2r7VTgw
Amperage Rating
30 A
Catalog ID
C-HBAB2030S
Connection Type
Load Lug
Dimensions
3.5 in L x 3.7 in W x 4.5 in H
Phase
1
Temperature Rating
40 deg C
Trip Type
Long Time and Instantaneous
Type
Type BAB Molded Case Thermal Magnetic
Voltage Rating
120/240 VAC
Wire Size
14 to 4 AWG
Application
For panelboards
Standard & Approvals
UL Listed, CSA Certified
