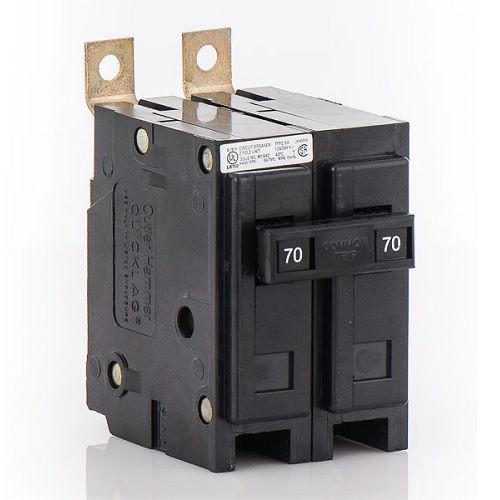

EATON QuickLag® BAB2070 Type BAB Miniature Circuit Breaker, 120/240 VAC, 70 A, 10 kA Interrupt, 2 Poles, Non-Interchangeable Thermal Magnetic Trip

Selected BAB2070EATON QuickLag® BAB2070 Type BAB Miniature Circuit Breaker, 120/240 VAC, 70 A, 10 kA Interrupt, 2 Poles, Non-Interchangeable Thermal Magnetic Trip
BAB2070EATON QuickLag® BAB2070 Type BAB Miniature Circuit Breaker, 120/240 VAC, 70 A, 10 kA Interrupt, 2 Poles, Non-Interchangeable Thermal Magnetic Trip

Documents

Short Description

EATON's bolt-on miniature circuit breakers offer superior protection for panelboards. They are also switching duty rated for 120 VAC fluorescent light applications. Easy to securely install. Choose from one, two or three-pole designs. Built and listed to UL 489. All products 15-100A are HACR rated. Choose from bolt-On Types BAB, QBHW, HBAX, HBAW.

Features

  • Flexible power feed connection (wire size and position) offers product uniformity as well as ease of installation
  • Field-mountable accessories make installation and on-site custom configuration easy
  • Compact designs available to minimize panel size

Specification

Interrupt Rating
10
Mounting Type
Bolt-On
Number Of Poles
2
Minimum Order Qty
1
Order Interval
1
Amperage Rating
70 A
Series
Type BAB
Temperature Rating
40 deg C
Trip Type
Non-Interchangeable/Thermal-Magnetic
Type
Quicklag
Voltage Rating
120/240 VAC
Wire Size
14 to 4 AWG
Application
Industrial
Standard & Approvals
CSA Certified, HACR Rated, UL File No. 489
Dimensions
3.8 in L x 2.2 in W x 4.8 in H
Connection Type
Extended Tang Line/Aluminum Box Lug Load
Catalog ID
C-HBAB2070
