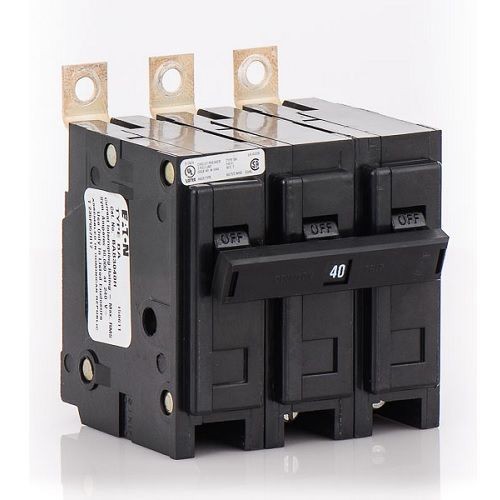

EATON QuickLag® BAB3040H Type BAB Miniature Circuit Breaker, 240 VAC, 40 A, 10 kA Interrupt, 3 Poles, Non-Interchangeable/Thermal Magnetic Trip

Selected BAB3040HEATON QuickLag® BAB3040H Type BAB Miniature Circuit Breaker, 240 VAC, 40 A, 10 kA Interrupt, 3 Poles, Non-Interchangeable/Thermal Magnetic Trip
BAB3040HEATON QuickLag® BAB3040H Type BAB Miniature Circuit Breaker, 240 VAC, 40 A, 10 kA Interrupt, 3 Poles, Non-Interchangeable/Thermal Magnetic Trip

Documents

Features

  • Switching duty rated for 120 VAC fluorescent light applications
  • HACR rated
  • (LI) long-time and instantaneous trip function
  • 10 kA at 120/240 VAC 5 kA 24 to 48/62.5/80 VDC interrupt rating
  • 40 A at 40 deg c amperage

Specification

Mounting Type
Bolt
Number Of Poles
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
40 A
Catalog ID
C-HBAB3040H
Connection Type
Bolt-On
Dimensions
3.8 x 3.2 x 4.7 in
Phase
3
Trip Type
Thermal Magnetic
Voltage Rating
240 VAC
Wire Size
14 to 4 AWG
Application
Industrial
Standard & Approvals
UL 489, CSA Listed
Series
BAB
Video
https://www.youtube.com/watch?v=ZBPV2r7VTgw
Interrupt Rating
5 to 10
