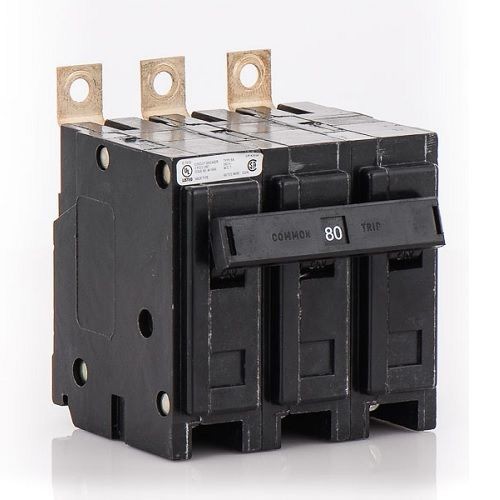

EATON QuickLag® BAB3080H Type BAB Miniature Circuit Breaker, 240 VAC, 80 A, 10 kA Interrupt, 3 Poles, Non-Interchangeable Trip

Selected BAB3080HEATON QuickLag® BAB3080H Type BAB Miniature Circuit Breaker, 240 VAC, 80 A, 10 kA Interrupt, 3 Poles, Non-Interchangeable Trip
BAB3080HEATON QuickLag® BAB3080H Type BAB Miniature Circuit Breaker, 240 VAC, 80 A, 10 kA Interrupt, 3 Poles, Non-Interchangeable Trip

Documents

Short Description

EATON's bolt-on miniature circuit breakers offer superior protection for panelboards. They are also switching duty rated for 120 VAC fluorescent light applications. Easy to securely install. Choose from one, two or three-pole designs. Built and listed to UL 489. All products 15-100A are HACR rated. Choose from bolt-On Types BAB, QBHW, HBAX, HBAW.

Features

  • Flexible power feed connection (wire size and position) offers product uniformity as well as ease of installation
  • Field-mountable accessories make installation and on-site custom configuration easy
  • Compact designs available to minimize panel size

Specification

Interrupt Rating
10
Mounting Type
Bolt-On
Number Of Poles
3
Series
Type BAB
Temperature Rating
40 deg C
Trip Type
Non-Interchangeable/Thermal-Magnetic
Type
Quicklag
Voltage Rating
240 VAC
Wire Size
14 to 4 AWG
Application
Industrial
Standard & Approvals
CSA Certified, HACR Rated, UL File No. 489
Amperage Rating
80 A
Connection Type
Extended Tang Line/Aluminum Box Lug Load
Dimensions
3.8 x 3.2 x 4.7 in
