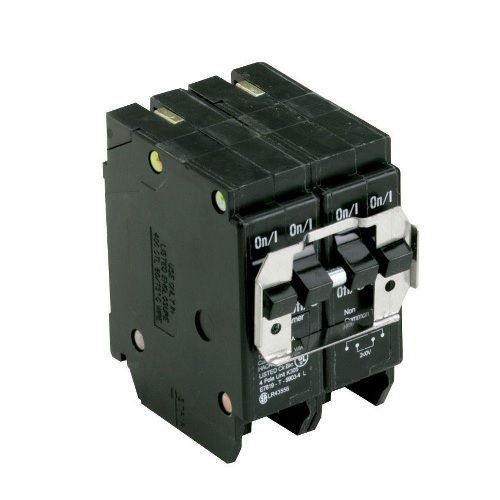

EATON BQ220250 Quadplex Type BQ Molded Case Circuit Breaker, 120/240 VAC, 20 to 50 A, 10 kA Interrupt, 4 Poles, Independent/LI Trip
EATON BQ220250 Quadplex Type BQ Molded Case Circuit Breaker, 120/240 VAC, 20 to 50 A, 10 kA Interrupt, 4 Poles, Independent/LI Trip
SKU: C-HBQ220250
Manufacturer Part Number: BQ220250
UPC: 786676370905
Features
- Circuit breaker includes rejection tab and offers long-time instantaneous trip to offer superior performance
- Ideal for load center applications and protects wiring from overheating or short-circuits
- Standard interrupting capacity
- Cu/Al wire
- Class CTL
- Two pole requires two 1 in (25.4 mm) spaces
- 20 A at 2-pole outer independent trip
- 50 A at 2-pole center independent trip
Specification
| Interrupt Rating | 10 kA |
|---|---|
| Mounting Type | Plug-On |
| Number Of Poles | 2 |
| Phase | 1 |
| Temperature Rating | 60 to 75 deg C |
| Trip Type | Long Time and Instantaneous |
| Type | Type BQ Quadplex Thermal Magnetic |
| Voltage Rating | 120/240 VAC |
| Wire Size | 14 to 4 AWG |
| Application | For used on load center |
| Standard & Approvals | UL 489 Listed, CSA Certified, Federal Specification W-C375 |
| Amperage Rating | 20 to 50 A |
| Dimensions | 3 in L x 2 in W x 3 in H |
| Actuator Type | Handle |
| Connection Type | Line and Load Lug |
