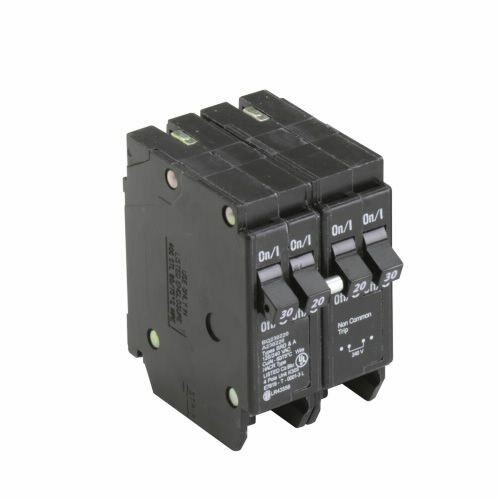

EATON BQ230220 Quadplex Type BQ CTL Thermal Magnetic Circuit Breaker, 120/240 VAC, 20/30 A, 10 kA Interrupt, 4 Poles, Independent Trip
EATON BQ230220 Quadplex Type BQ CTL Thermal Magnetic Circuit Breaker, 120/240 VAC, 20/30 A, 10 kA Interrupt, 4 Poles, Independent Trip
SKU: C-HBQ230220
Manufacturer Part Number: BQ230220
UPC: 786676004572
Documents
Features
- 14 to 4 AWG copper aluminum at 60/75 deg C wire size
- Used with type BR loadcenters
- Rejection tab feature
- 1 in CTL
Specification
| Interrupt Rating | 10 kA |
|---|---|
| Mounting Type | Plug-On |
| Number Of Poles | 4 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20/30 A |
| Catalog ID | C-HBQ230220 |
| Connection Type | Feed Through |
| Dimensions | 3 in L x 2 in W x 3 in H |
| Phase | 1 |
| Temperature Rating | 60 to 75 deg C |
| Trip Type | Independent/Thermal Magnetic |
| Type | Type BQ Quadplex |
| Voltage Rating | 120/240 VAC |
| Wire Size | 14 to 4 AWG |
| Standard & Approvals | UL 489 |
