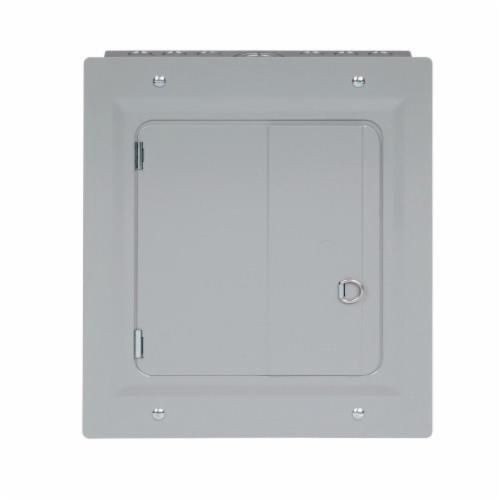

EATON BR1020B100FRNV 1-Phase Main Breaker Loadcenter, 120/240 VAC, 100 A, 20 Poles, 10 kA Interrupt

Selected BR1020B100FRNVEATON BR1020B100FRNV 1-Phase Main Breaker Loadcenter, 120/240 VAC, 100 A, 20 Poles, 10 kA Interrupt
BR1020B100FRNVEATON BR1020B100FRNV 1-Phase Main Breaker Loadcenter, 120/240 VAC, 100 A, 20 Poles, 10 kA Interrupt

Documents

Short Description

Specially designed for easy installation, EATON BR 1 in load centers house the branch circuit breakers and the wiring requires to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

Features

  • Twin neutral design located in wireway, away from circuit breakers, means easier wiring and balancing of the load
  • Extra 1-1/2 in knockout for bundling allows maximum wiring gutter space for ease of wiring in compliance with NEC requirements
  • One-piece roll-formed metal backpan with circuit breaker alignment notches ensures accurately aligned breaker and bus tabs
  • Standard 14-3/8 in wide enclosures fit snugly between wall stud
  • Tangential main knockout eliminates the need for conduit offsets, which permits faster, easier installation
  • Robertson slotted square combo screwheads, which means only one screwdriver is need for installation
  • Aluminum bus material
  • No feed-thru lugs
  • 4 to 1/0 AWG copper aluminum at 60/75 deg C wire size
  • 1-phase

Specification

Housing Material
Metallic
Interrupt Rating
10 kA
Number of Circuits
20
Number of Spaces
10
Minimum Order Qty
1
Order Interval
1
Amperage Rating
100 A
Breaker Type
BR
Enclosure Type
NEMA 3R
Type
3-Wire
Voltage Rating
120/240 VAC
Wire Size
4 to 1/0 AWG
Standard & Approvals
UL Listed
Application
For Type BR 1 in breakers
Includes
Cover
Enclosure Box Size
B2R
Dimensions
15.1 in L x 12.5 in W x 4.2 in H
Catalog ID
C-HBR1020B100FRNV
Breaker Mounting
Flush
