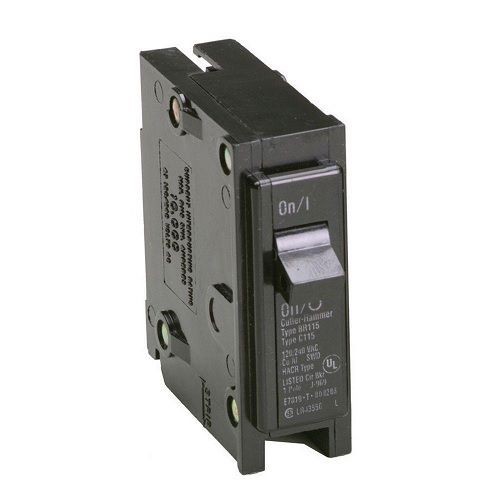

EATON BR115 Type BR Circuit Breaker, 120/240 VAC, 15 A, 10 kA Interrupt, 1 Poles, Thermal/Magnetic Trip
EATON BR115 Type BR Circuit Breaker, 120/240 VAC, 15 A, 10 kA Interrupt, 1 Poles, Thermal/Magnetic Trip
SKU: C-HBR115
Manufacturer Part Number: BR115
UPC: 786676362054
Documents
Features
- Common trip requires one 1 in space
- All BR circuit breakers have rejection tab feature
- Units feature a quick-make, quick break switch mechanism combined with inverse time element tripping operation and trip-free handle design
- For single pole circuit breakers carry listing for HACR application
Specification
| Interrupt Rating | 10 |
|---|---|
| Mounting Type | Plug-On |
| Number Of Poles | 1 |
| Phase | 1 |
| Temperature Rating | 600 to 750 deg C |
| Trip Type | Thermal Magnetic |
| Type | Type BR |
| Voltage Rating | 120/240 VAC |
| Wire Size | 14 to 4 AWG |
| Standard & Approvals | CSA Certified, NEMA Standards, UL 489, Federal Specification W-C375 |
| Amperage Rating | 15 A |
| Dimensions | 3 in L x 1 in W x 3 in H |
| Enclosure Type | NEMA 1/4X/3R |
