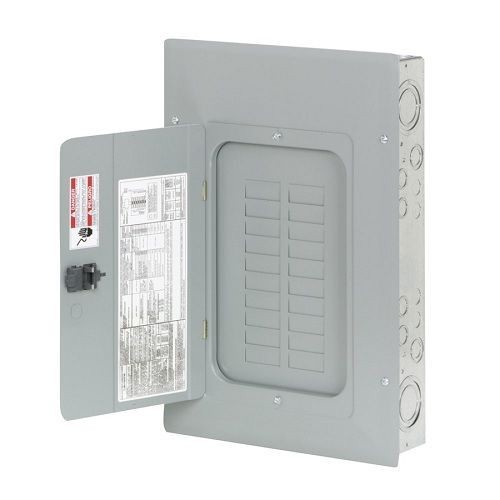

EATON BR2020L125 1-Phase Main Lug Loadcenter, 120/240 VAC, 125 A, 20 Poles, 10 kA Interrupt

Selected BR2020L125EATON BR2020L125 1-Phase Main Lug Loadcenter, 120/240 VAC, 125 A, 20 Poles, 10 kA Interrupt
BR2020L125EATON BR2020L125 1-Phase Main Lug Loadcenter, 120/240 VAC, 125 A, 20 Poles, 10 kA Interrupt

Documents

Features

  • No feed-thru lug
  • Aluminum bus material
  • Metallic enclosure material
  • Single phase
  • Used with type BR 1 in breakers
  • Ground bar kits priced separately unless otherwise noted
  • Has notch for BREQS125 hold-down screw
  • Combination cover style
  • Suitable for use as service equipment when not more than six main disconnecting means are provided and when not used as a lighting and appliance panelboard
  • Has notch for brhdk125 hold-down kit

Specification

Interrupt Rating
10
Mounting Type
Combination
Number of Circuits
20
Number Of Poles
20
Number of Spaces
20
Minimum Order Qty
1
Order Interval
1
Amperage Rating
125 A
Breaker Type
BR
Catalog ID
C-HBR2020L125
Dimensions
3.88 in L x 14.31 in W x 21 in H
Enclosure Box Size
NEMA C1
Enclosure Type
NEMA 1
Voltage Rating
120/240 VAC
Wire Size
6 to 2/0 AWG Cu/Al
Wiring Configuration
3-Wire
Standard & Approvals
UL File No. 67/50
Includes
BREQS125 Hold Down Screw, Cover
