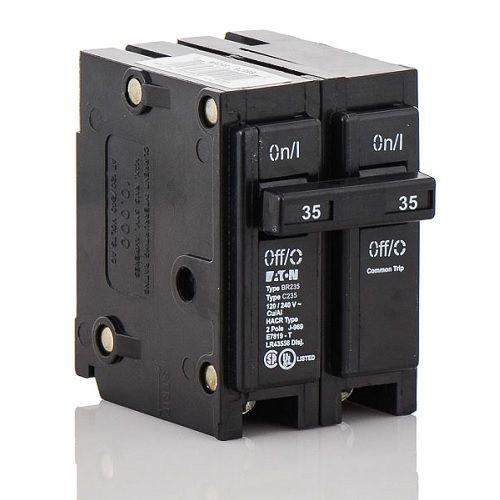

EATON BR235 Type BR Plug-On Molded Case Circuit Breaker, 120/240 VAC, 35 A, 10 kA Interrupt, 2 Poles, Common Trip

Selected BR235EATON BR235 Type BR Plug-On Molded Case Circuit Breaker, 120/240 VAC, 35 A, 10 kA Interrupt, 2 Poles, Common Trip
BR235EATON BR235 Type BR Plug-On Molded Case Circuit Breaker, 120/240 VAC, 35 A, 10 kA Interrupt, 2 Poles, Common Trip

Documents

Short Description

EATON offers BR 1 in circuit breakers with a thermal-magnetic trip curve that avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions.

Features

  • All BR circuit breakers have rejection tab feature
  • Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design
  • Standard interrupting capacity
  • Cu/Al wire
  • Two pole requires two 1 in (25.4 mm) space

Specification

Interrupt Rating
10
Mounting Type
Plug-On
Number Of Poles
2
Phase
1
Temperature Rating
40 deg C
Trip Type
Long Time/Instantaneous
Type
Type BR
Voltage Rating
120/240 VAC
Wire Size
14 to 4 AWG
Application
For used on load center
Standard & Approvals
UL 489 Listed, CSA Certified, Federal Specification W-C375
Amperage Rating
35 A
Dimensions
3 in L x 2 in W x 3 in H
Actuator Type
Handle
