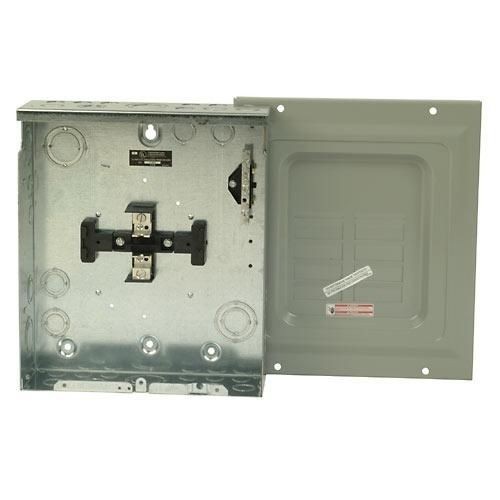

EATON BR48L125SP 1-Phase Main Lug Loadcenter, 120/240 VAC, 125 A, 8 Poles, 10 kA Interrupt
EATON BR48L125SP 1-Phase Main Lug Loadcenter, 120/240 VAC, 125 A, 8 Poles, 10 kA Interrupt
SKU: C-HBR48L125SP
Manufacturer Part Number: BR48L125SP
UPC: 786676001236
Documents
Features
- Current design special feature
- Aluminum bus material
- Metallic enclosure material
- Single phase
- Used with type BR 1 in breakers
- Ground bar kits priced separately
- For 2/4 circuit loadcenters, use GBK5 or GBK520 ground bar
- Ground bars mount to the left side wall of the enclosure for the 4/8, 6/12 and 8/16 circuit loadcenters
- Suitable for use as service equipment when not more than two service disconnecting mains are provided or when not more than six service disconnecting mains are provided and when not used as a lighting and appliance panelboard
- Insulated/bondable split neutral
- 1 in maximum space
- Cover not included
Specification
| Interrupt Rating | 10 |
|---|---|
| Mounting Type | Surface |
| Number of Circuits | 8 |
| Number Of Poles | 8 |
| Number of Spaces | 4 |
| Voltage Rating | 120/240 VAC |
| Wire Size | 14 to 1/0 AWG Cu/Al at 60 or 75 deg C |
| Wiring Configuration | 3-Wire |
| Standard & Approvals | UL File No. 67/50 |
| Amperage Rating | 125 A |
| Dimensions | 3.56 in L x 11 in W x 4.1 in H |
| Breaker Type | BR |
| Enclosure Box Size | NEMA 1/Indoor |
| Enclosure Type | NEMA 1 |
