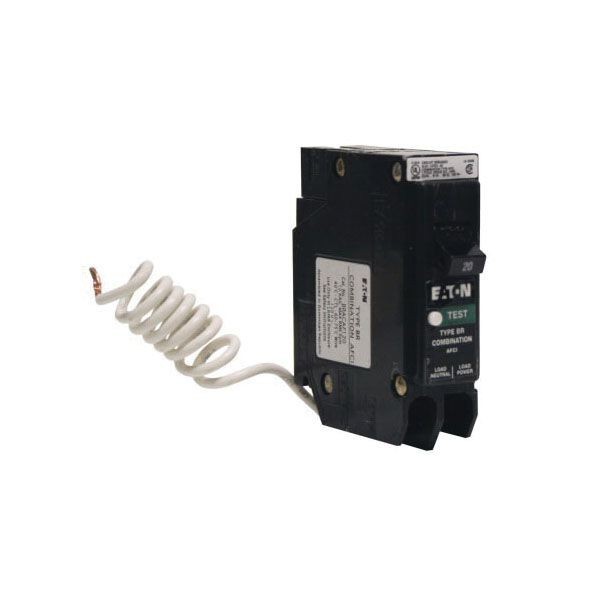

EATON BRACAF120 Type BRA Combination Arc Fault Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 Poles, Common Trip
EATON BRACAF120 Type BRA Combination Arc Fault Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 Poles, Common Trip
SKU: C-HBRACAF120
Manufacturer Part Number: BRACAF120
UPC: 786685514352
Documents
Short Description
Features
- Diagnostic LED
- Used with type BR loadcenters
- 14 to 4 AWG Cu/Al at 60 or 75 deg C wire
- Eaton's volume 1 residential and light commercial
- Type BR arc fault circuit breakers and loadcenters
- Type BR (1 in) combination arc fault circuit interrupter
- NEC AFCI protection requirements
Specification
| Interrupt Rating | 10 kA |
|---|---|
| Number Of Poles | 1 |
| Temperature Rating | 60 to 75 deg C |
| Trip Type | Common |
| Type | Type BRA Combination |
| Voltage Rating | 120/240 VAC |
| Wire Size | 14 to 4 AWG |
| Application | For use with load centers |
| Standard & Approvals | UL 1699 |
| Amperage Rating | 20 A |
| Dimensions | 6 in L x 3-1/2 in W x 1-1/4 in H |
| Replacement Part | C-HBRN120AF |
