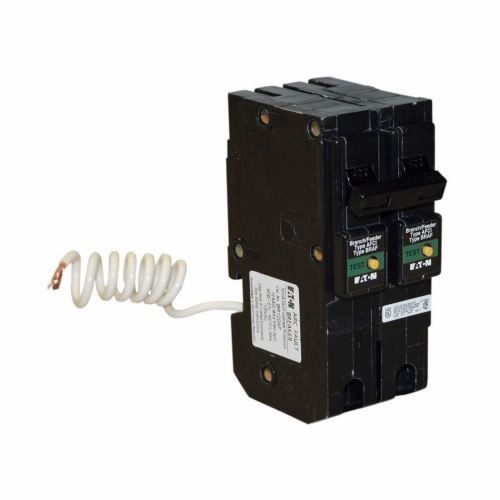

EATON FIRE-GUARD® BRL215CAF Type BR Combination Arc-Fault Circuit Breaker, 120/240 VAC, 15 A, 10 kAIC Interrupt, 2 Poles, Common Trip

Selected EATON FIRE-GUARD® BRL215CAF Type BR Combination Arc-Fault Circuit Breaker, 120/240 VAC, 15 A, 10 kAIC Interrupt, 2 Poles, Common Trip
EATON FIRE-GUARD® BRL215CAF Type BR Combination Arc-Fault Circuit Breaker, 120/240 VAC, 15 A, 10 kAIC Interrupt, 2 Poles, Common Trip

Documents

Short Description

Eaton's Two-pole CAFCIs not only continuously monitor for arcing conditions reducing the risk of electrical fires, they now also provide protection for existing circuits using a shared neutral homerun for renovation applications. Two-Pole AFCIs can also be used in new construction to save time and money. By using a shared neutral homerun, where two adjacent hot conductors share a common neutral back to the loadcenter provides the installer with significant labor and material costs savings.

Features

  • For use with Type BR loadcenters
  • 1 in wide
  • Can be used in renovation applications providing the latest electrical safety protection for existing circuits utilizing shared neutral homeruns
  • Meets the 2008 and 2011 NEC® for areas requiring AFCI protection
  • Notes: Combination Fireguard/Arc Fault, Common trip refers to two-pole 240V load application sourced by 120/240V, Independent trip refers to two-pole multi-wire, home run or shared neutral circuits

Specification

Interrupt Rating
10 kAIC
Mounting Type
Plug-On
Number Of Poles
2
Minimum Order Qty
1
Order Interval
1
Amperage Rating
15 A
Catalog ID
C-HBRL215CAF
Dimensions
6 in L x 3-1/2 in W x 1-1/4 in H
Series
Type BR
Temperature Rating
60 to 75 deg C
Trip Type
Common
Voltage Rating
120/240 VAC
Wire Size
14 to 4 AWG
Standard & Approvals
Federal Specifications W-C375, UL File No. 1699
