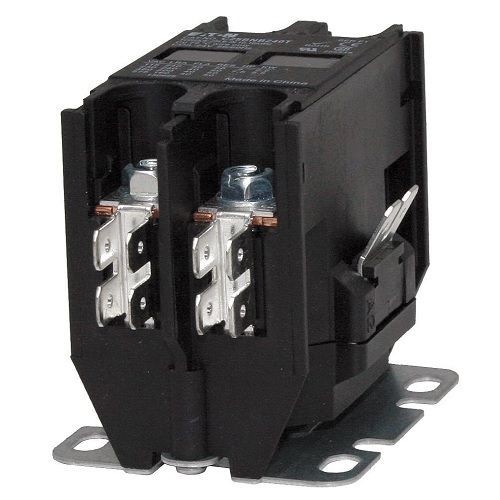

EATON C25BNB240B Compact Definite Purpose Contactor With Metal Mounting Plate, 208/240 VAC V Coil, 40/50 A, 2 Poles

Selected EATON C25BNB240B Compact Definite Purpose Contactor With Metal Mounting Plate, 208/240 VAC V Coil, 40/50 A, 2 Poles
EATON C25BNB240B Compact Definite Purpose Contactor With Metal Mounting Plate, 208/240 VAC V Coil, 40/50 A, 2 Poles

Short Description

Eaton offers the most complete line of Definite purpose (DP) contactors in the industry. Designed for heating, ventilation, air conditioning and refrigeration (HVACR) applications, Eaton's DP contactors are designed to handle the most challenging installations.

Features

  • Compact, two-pole frame
  • Contactor, open model
  • 50 A resistive load
  • Definite purpose contactors quick selector
  • Binding head screw and quick connect terminals (side-by-side)
  • Completely encased design impervious to dust and other environmental elements
  • Contactors and starters (up to 60 A)
  • Open components and enclosed designs
  • Open with metal mounting plate

Specification

Frequency Rating
50/60 Hz
Maximum Load Current
40 A
Number Of Poles
2
Terminal
Binding Head Screw/Quick Connect
Type
Non-Reversing
Application
For refrigeration, air conditioning and resistance heating to traditional standards for quality and reliability
Standard & Approvals
UL Listed, CSA Certified
Dimensions
3.19 in L x 2.32 in W x 1.97 in H
Coil Voltage
208 to 240 VAC
Enclosure Type
Open
