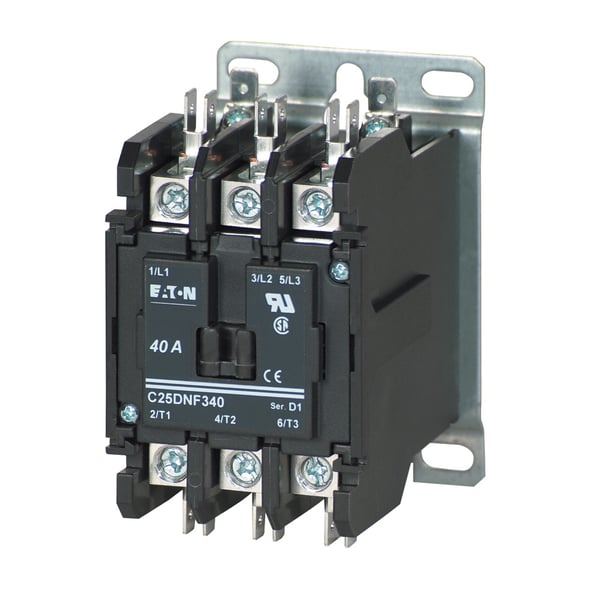

Cutler-Hammer C25DNF340A Non-Reversing Definite Purpose Contactor, 110 to 120 VAC Coil, 40 A, 3 Poles

Selected Data-Spec SheetCutler-Hammer C25DNF340A Non-Reversing Definite Purpose Contactor, 110 to 120 VAC Coil, 40 A, 3 Poles
Data-Spec SheetCutler-Hammer C25DNF340A Non-Reversing Definite Purpose Contactor, 110 to 120 VAC Coil, 40 A, 3 Poles

Documents

Short Description

EATON offers the most complete line of definite purpose (DP) contactors in the industry. Designed for heating, ventilation, air conditioning and refrigeration (HVACR) applications, EATON's DP contactors are designed to handle the most challenging installations.

Features

  • Completely encased design impervious to dust and other environmental elements
  • Single two three and four-pole configurations
  • Open components and enclosed designs

Specification

Frequency Rating
50/60
Maximum Load Current
40
Number Of Poles
3
Terminal
Box Lugs and Quick Connect
Type
Non-Reversing
Standard & Approvals
ARI 780/790 Standard, CE Certified, CSA Certified, EN 60947-4-1, IEC 60947-4-1, RoHS Compliance, UL File No. E1491, Guides NLDX2 and NLDX8
Dimensions
3.35 in L x 2.4 in W x 3.75 in H
Coil Voltage
110 to 120
Connection Type
Quick
Enclosure Type
Open With Metal Mounting Plate
