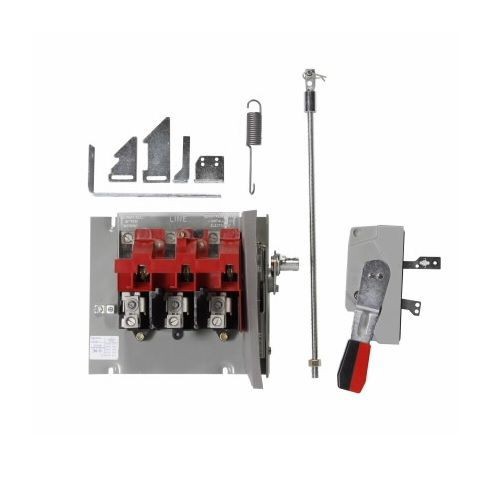

EATON C361SC161 Type C361 Fusible Variable Depth Disconnect Switch and Operating Mechanism, 600 VAC, 250 VDC, 30 A, 5 hp, 7-1/2 hp, 15 hp, 20 hp
EATON C361SC161 Type C361 Fusible Variable Depth Disconnect Switch and Operating Mechanism, 600 VAC, 250 VDC, 30 A, 5 hp, 7-1/2 hp, 15 hp, 20 hp
SKU: C-HC361SC161
Manufacturer Part Number: C361SC161
UPC: 782113599168
Features
- Switch and operating mechanism with 4 in handle
- 7 to 16 in depth range
- 2 to 14 AWG Cu/Al wire range
- 7.5 hp at 208/240 VAC, 15 hp at 480 VAC, 20 hp at 600 VAC and 5 hp at 250 VDC power rating
- Right hand mounting
- 60 A at 250 VAC, 30 A at 600 VAC class H, J and K fuse clip rating
Specification
| Minimum Order Qty | 1 |
|---|---|
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=l6kYLolLAc4 |
| Amperage Rating | 30 A |
| Phase | 3 |
| Voltage Rating | 600 VAC/250 VDC |
| Horsepower | 20/5 hp |
| Standard & Approvals | UL E55492, CSA LR353-439 |
| Type | Type C361 Fusible Variable Depth |
| Terminal Type | Line Lug |
| Enclosure Type | NEMA 1/12 |
| Dimensions | 18.8 in L x 11.4 in W x 9.8 in H |
| Catalog ID | C-HC361SC161 |
| Actuator Type | Padlock-off Handle |
| Mounting Type | Flange |
