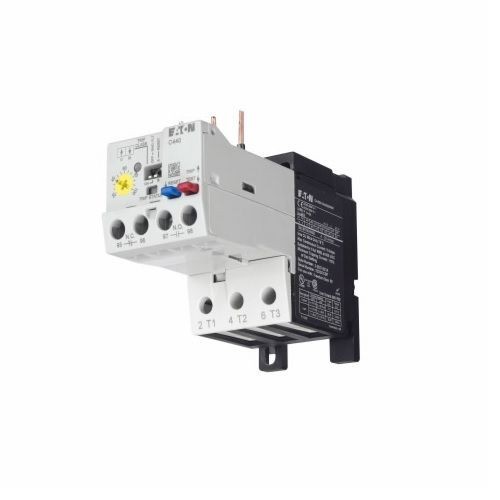

EATON C440A1A020SF1 Freedom Class 10/20/30 Standard Electronic Overload Relay, 4/20 A

Selected EATON C440A1A020SF1 Freedom Class 10/20/30 Standard Electronic Overload Relay, 4/20 A
EATON C440A1A020SF1 Freedom Class 10/20/30 Standard Electronic Overload Relay, 4/20 A

Documents

Short Description

Eaton's new solid-state overload relay (SSOL) is the most compact, high-featured, economical product in its class. Designed on a global platform, the new SSOL covers the entire power control spectrum including NEMA, IEC and DP contactors. The NEMA and DP versions are offered with the C440 designation while the IEC offering includes the XTOE version. The electronic design provides reliable, accurate and value driven protection and communications capabilities in a single compact device. It is the flexible choice for any application requiring easy-to-use, reliable protection.

Features

  • Reliable, accurate, solid-state motor protection
  • Easy to select, install and maintain
  • Compact size and flexible, intelligent design
  • Global product offering
  • Selectable auto/manual reset
  • Selectable 10A, class 10, 20, 30 trip type
  • 45 mm frame
  • Reset selectable auto/manual
  • Standard

Specification

Mounting Type
Direct
Minimum Order Qty
1
Order Interval
1
Amperage Rating
4/20 A
Catalog ID
C-HC440A1A020SF1
Dimensions
4.32 in L x 1.8 in W x 6.5 in H
Enclosure Type
NEMA 1
Type
Electronic
Standard & Approvals
UL Listed, CSA, CE Certified
Series
C440 Freedom
