EATON CCV2200X Type CCV Tenant Main Circuit Breaker, 120/240 VAC, 200 A, 10 kA Interrupt, 2 Poles, Thermal/Magnetic Trip

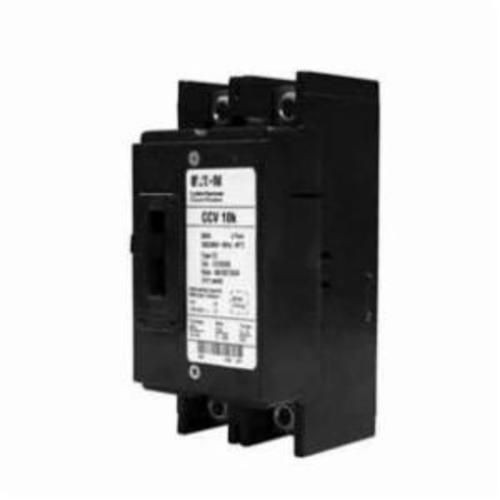

Selected CCV2225EATON CCV2225 Type CCV Tenant Main Circuit Breaker, 120/240 VAC, 225 A, 10 kA Interrupt, 2 Poles, Thermal/Magnetic Trip
EATON CCV2200X Type CCV Tenant Main Circuit Breaker, 120/240 VAC, 200 A, 10 kA Interrupt, 2 Poles, Thermal/Magnetic Trip
SKU: C-HCCV2200X
Manufacturer Part Number: CCV2200X
Documents
Features
- For use with 37MM and 37SS three-phase modular metering stacks
- Indirectly heated thermal tripping bimetal elements
- Standard terminal lugs (wire connectors) suitable for copper or aluminum wire
- Backward compatibility type CCV and CCVH retains same profile and footprint as the CC and CCH breaker, allowing use in the same applications
Specification
| Interrupt Rating | 10 kA |
|---|---|
| Mounting Type | Bolt-On |
| Number Of Poles | 2 |
| Phase | 1 |
| Temperature Rating | 60 to 75 deg C |
| Trip Type | Long Time and Instantaneous |
| Voltage Rating | 120/240 VAC |
| Standard & Approvals | UL 489 Listed |
| Amperage Rating | 200 A |
| Application | For use on Type ECC Unit Enclosures |
| Connection Type | Load Lug |
| Wire Size | 2/0 AWG to 300 kcmil |
| Dimensions | 8 in L x 4-1/2 in W x 5-1/2 in H |
| Type | Type CCV Thermal Magnetic |
