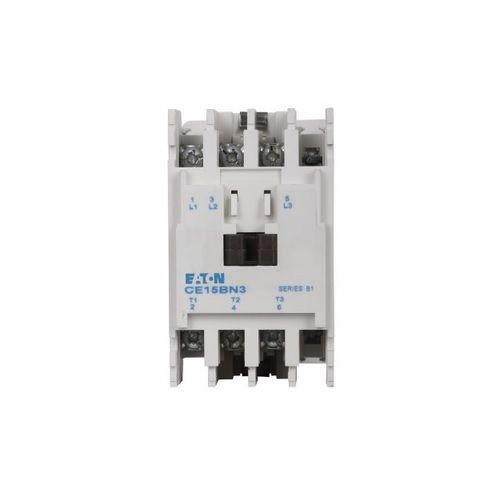

EATON CE15BNS3AB Freedom Non-Reversing IEC Contactor, 110/120 VAC V Coil, 10 A, 1NO Contact, 3 Poles
EATON CE15BNS3AB Freedom Non-Reversing IEC Contactor, 110/120 VAC V Coil, 10 A, 1NO Contact, 3 Poles
SKU: C-HCE15BNS3AB
Manufacturer Part Number: CE15BNS3AB
UPC: 782113778075
Documents
Features
- B Frame
- Fourth power pole position is used as the auxiliary contact and adds no additional width, No enclosure
Specification
| Frequency Rating | 50 to 60 Hz |
|---|---|
| Mounting Type | Side |
| Number Of Poles | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Coil Power Rating | 0.5 hp |
| Coil Voltage | 110 to 120 VAC |
| Dimensions | 3.25 in L x 1.8 in W x 2.96 in H |
| Series | Freedom |
| Type | Non Reversing |
| Standard & Approvals | CSA Certified, DIN VDE 0600, IEC Rated, ISO 9000, UL Listed |
| Contact Configuration | 1 NO |
| Catalog ID | C-HCE15BNS3AB |
| Maximum Load Current | 12/31/1899 10:00:00 AM |
