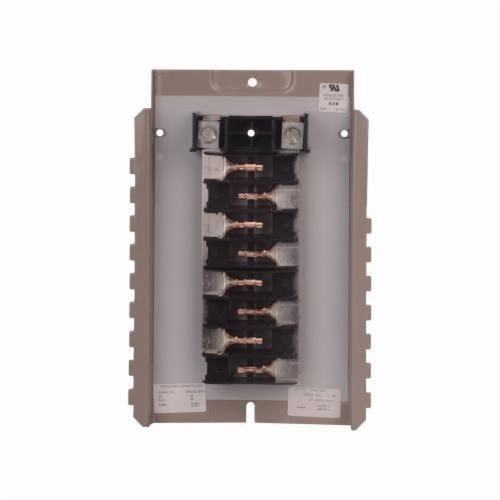

EATON CH16L125INT 16-Circuit Loadcenter Interior, 120/240 VAC, 125 A, 1 ph Phase, 3 W

Selected CH16L125INTEATON CH16L125INT 16-Circuit Loadcenter Interior, 120/240 VAC, 125 A, 1 ph Phase, 3 W
CH16L125INTEATON CH16L125INT 16-Circuit Loadcenter Interior, 120/240 VAC, 125 A, 1 ph Phase, 3 W

Short Description

As a leader in the electrical distribution equipment business, Eaton has a unique product offering for equipment manufacturers, panel builders and virtually any OEM that has a need for power distribution within their equipment. The OEM interior offering consists of a wide variety of power distribution options utilizing components from Eaton's CH and BR load center product lines. With high-volume, standardized products, OEMs can expect to receive high-quality products covering configurations meeting virtually any power distribution need. Coupled with Eaton's expertise in circuit breaker design and manufacturing, OEM interiors provide solid power distribution and circuit protection in a compact, easy-to-install package. Interiors are offered from 2 to 42 circuits and from 70 to 225 A.

Features

  • Copper bus
  • 16 circuits
  • 3/4 in size
  • (1) 2/0 to 6 AWG copper/aluminum wire range

Specification

Interrupt Rating
10 kA
Number of Spaces
16
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=1Z5-U-A4frU
Amperage Rating
125 A
Cable Size
6 to 2/0 AWG
Catalog ID
C-HCH16L125INT
Circuit Breaker Type
CH
Dimensions
13.62 in L x 6.25 in W x 2 in H
Phase
1
Type
Main Lug Only
Voltage Rating
120/240 VAC
Wattage
3 W
Wiring Configuration
3-Wire
Standard & Approvals
UL Listed, CSA Certified
