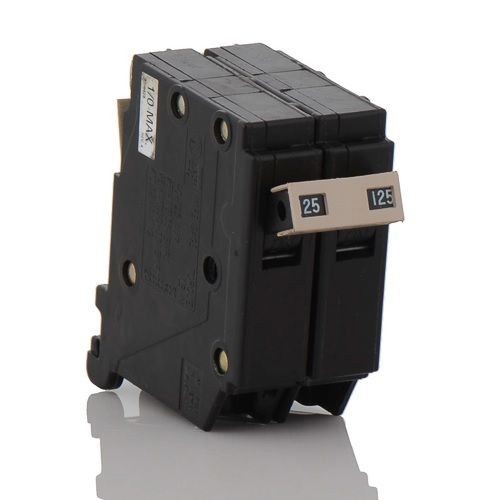

EATON CH2125 Type CH Standard Circuit Breaker, 120/240 VAC, 125 A, 10 kA Interrupt, 2 Poles, Common/Thermal Magnetic Trip
EATON CH2125 Type CH Standard Circuit Breaker, 120/240 VAC, 125 A, 10 kA Interrupt, 2 Poles, Common/Thermal Magnetic Trip
SKU: C-HCH2125
Manufacturer Part Number: CH2125
UPC: 782113298788
Documents
Features
- Notes: Two-Pole 120/240V Common Trip Requires Two 3/4-in Spaces
Specification
| Interrupt Rating | 10 |
|---|---|
| Mounting Type | Plug-On |
| Number Of Poles | 2 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 125 A |
| Catalog ID | C-HCH2125 |
| Dimensions | 3-3/4 in L x 2-1/2 in W x 2-3/4 in H |
| Enclosure Type | NEMA 1/3R |
| Temperature Rating | 60 to 75 deg C |
| Trip Type | Common |
| Type | Standard |
| Voltage Rating | 120/240 VAC |
| Wire Size | 10 to 1/0 AWG |
| Standard & Approvals | UL File No 489 |
