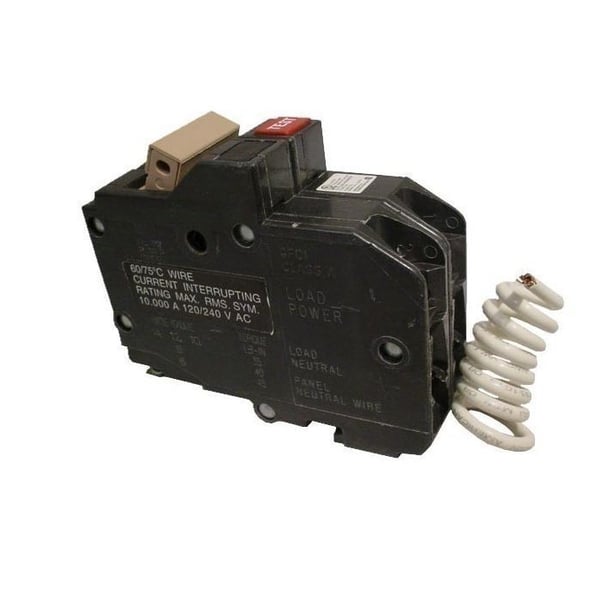

EATON CH215GFT Type CH Self-Test Ground Fault Circuit Breaker, 120/240 VAC, 15 A, 10 kA Interrupt, 2 Poles, Common Trip

Selected CH215GFTEATON CH215GFT Type CH Self-Test Ground Fault Circuit Breaker, 120/240 VAC, 15 A, 10 kA Interrupt, 2 Poles, Common Trip
CH215GFTEATON CH215GFT Type CH Self-Test Ground Fault Circuit Breaker, 120/240 VAC, 15 A, 10 kA Interrupt, 2 Poles, Common Trip

Documents

Short Description

Eaton's CH ground fault current interrupters (GFCIs) are 3/4 in wide and provide superior safety over a standard electrical outlet in areas where electricity may come into contact with water. GFCIs are required in any application near water such as kitchen countertops, bathrooms, swimming pools, hot tubs and outdoor receptacles. They immediately break the circuit when electrical current leakage is detected, reducing the risk of shock and electrocution.

Features

  • The panel neutral conductor connects to the neutral bar, even though the neutral is not included in a 240 VAC load circuit
  • This connection is necessary to supply a 120 VAC power source to the ground fault sensing circuit

Specification

Interrupt Rating
10 kA
Number Of Poles
2
Minimum Order Qty
1
Order Interval
1
Amperage Rating
15 A
Catalog ID
C-HCH215GFT
Connection Type
Plug-On
Enclosure Type
NEMA 1/3R
Finish
Polyurethane Coated
Temperature Rating
60 to 75 deg C
Trip Type
Common
Voltage Rating
120/240 VAC
Standard & Approvals
UL 489, Federal Specification W-C 375, HACR Rated, IGCC 4813, RoHS, ARRA, Buy American Act Compliant
Application
Kitchen Countertops, Bathrooms, Swimming Pools, Hot Tubs and Outdoor Receptacle Applications
Wire Size
14 to 6 AWG Cu/Al
Type
Type CH Self Test
Dimensions
4-1/2 in L x 2-3/4 in W x 2 in H
