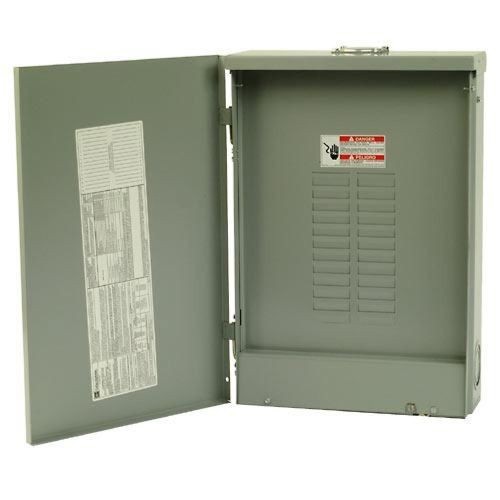

EATON CH24L3125R 3-Phase Standard Main Lug Loadcenter, 208Y/120 VAC, 240 VAC, 125 A, 24 Poles, 35 kA Interrupt
EATON CH24L3125R 3-Phase Standard Main Lug Loadcenter, 208Y/120 VAC, 240 VAC, 125 A, 24 Poles, 35 kA Interrupt
SKU: C-HCH24L3125R
Manufacturer Part Number: CH24L3125R
UPC: 782113097664
Documents
Features
- Ground bar Type GBK14 is installed
- Suitable for use as service equipment when a circuit breaker is used as a main breaker
- The main breaker is backfed and requires hold-down bracket kit catalog number Type CH125RB
- Suitable for use as service equipment when not more than six service disconnecting means are provided and when not used as a lighting and appliance panelboard (see Article 408.34 of the NEC)
- Ground bar Type GBK21 is installed
- Standard special feature
- Copper bus material
- Metallic enclosure material
- Overhead feed type
- 6-2/0 AWG wire size range Cu/Al 60 or 75 deg C for main lugs
- Furnished with hub closure plates
Specification
| Mounting Type | Surface |
|---|---|
| Number of Circuits | 24 |
| Number Of Poles | 24 |
| Number of Spaces | 24 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=1Z5-U-A4frU |
| Amperage Rating | 125 A |
| Breaker Mounting | Plug-On |
| Breaker Type | CH |
| Bus Rating | 125 A |
| Catalog ID | C-HCH24L3125R |
| Dimensions | 14.31 in W x 5.19 in D x 29.13 in H |
| Enclosure Box Size | C |
| Enclosure Type | NEMA 3R |
| Series | A |
| Voltage Rating | 208Y/120 VAC, 240 VAC |
| Wire Size | 14 to 1/0 AWG |
| Wiring Configuration | 4-Wire |
| Standard & Approvals | UL File No. 67/50 |
