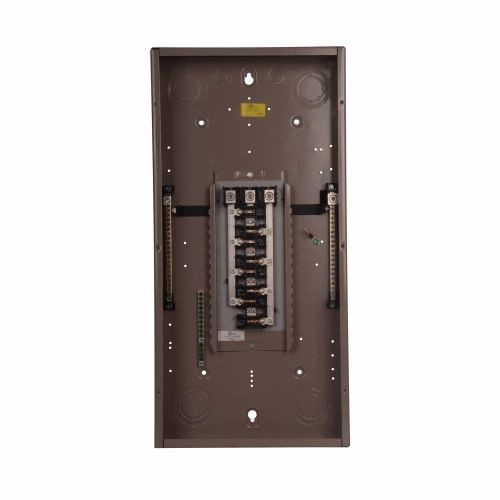

EATON CH24L3225D 3-Phase Standard Main Lug Loadcenter, 208Y/120 VAC, 225 A, 24 Poles, 35 kA Interrupt
EATON CH24L3225D 3-Phase Standard Main Lug Loadcenter, 208Y/120 VAC, 225 A, 24 Poles, 35 kA Interrupt
SKU: C-HCH24L3225D
Manufacturer Part Number: CH24L3225D
UPC: 782113097671
Documents
Short Description
Features
- 1-piece silver flash plated copper bus provides superior conductivity throughout the entire product line
- Steel backpan provides positive, reliable mounting
- CH 150-225 ampere main breakers are rated 25 kAIC providing contractors with the highest interrupting rating main breaker in the industry
- Unique sandalwood finish provides an esthetically appealing, scratch resistant powder coating
- CH breakers include an industry exclusive trip to off feature that allows a homeowner to easily identify a tripped circuit breaker
- It accommodates copper/aluminum wire at 60/75 deg C
- Copper bus
- Overhead or underground feed
Specification
| Housing Material | Metallic |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | C-HCH24L3225D |
| Description | Does Not Include Cover |
| Dimensions | 29.13 in L x 14.31 in W x 3.88 in H |
| Enclosure Type | NEMA 1 |
| Voltage Rating | 208Y/120 VAC |
| Wire Size | 4 AWG to 300 kcmil |
| Wiring Configuration | 4-Wire |
| Application | Indoor |
| Type | 3-Phase Standard |
| Enclosure Box Size | NEMA D |
| Breaker Type | Type CH |
| Amperage Rating | 225 A |
| Video | https://www.youtube.com/watch?v=1Z5-U-A4frU |
| Number of Spaces | 24 |
| Number Of Poles | 24 |
| Number of Circuits | 24 |
| Standard & Approvals | ARRA, Buy American Act and RoHS Compliant, CE Marked, CSA Certified, UL Listed |
