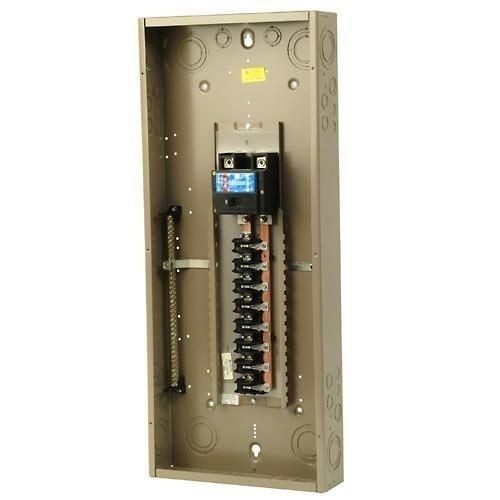

EATON CH32L225INT 32-Circuit Standard Loadcenter Interior, 120/240 VAC, 225 A, 1 ph Phase

Selected CH32L225INTEATON CH32L225INT 32-Circuit Standard Loadcenter Interior, 120/240 VAC, 225 A, 1 ph Phase
CH32L225INTEATON CH32L225INT 32-Circuit Standard Loadcenter Interior, 120/240 VAC, 225 A, 1 ph Phase

Features

  • The CH interiors feature 100% copper bus and use the CH 3/4 in wide circuit breaker, which minimizes panel space
  • Larger knockout provides easier installation and time savings for renovation installations
  • Top or bottom feed - straight-in wiring saves labor and material
  • One panel for either top or bottom applications
  • 2/0 lug - easily removable and can be installed in any location on the neutral bar
  • One-piece silver-flashed copper bus provides superior conductivity, corrosion resistance and durability
  • Drywall marking on enclosure indicates proper mounting depth for flush applications
  • Steel backpan provides solid and reliable breaker mounting - single piece design for stability and durability
  • Tangential center knockout - easier installation for conduit applications
  • Unique sandalwood finish - aesthetically appealing, scratch-resistant powder coating
  • Neutral bus (strap) easily removable for sub-panel applications
  • Bonding Z-strap provides easy field conversion for service entrance applications
  • Twin neutral bars - minimum 150% neutral capacity
  • 60/75 deg C rated wire

Specification

Mounting Type
Plug-On
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=1Z5-U-A4frU
Amperage Rating
225 A
Phase
1
Voltage Rating
120/240 VAC
Wiring Configuration
3-Wire
Standard & Approvals
UL Listed, CSA Certified, Class CTL
Type
Type CH Main Lug
Dimensions
15.87 in L x 6.24 in W x 2.01 in H
Circuit Breaker Type
Double Row
Catalog ID
C-HCH32L225INT
Cable Size
4 AWG to 300 kcmil
Number of Spaces
32
Interrupt Rating
1
