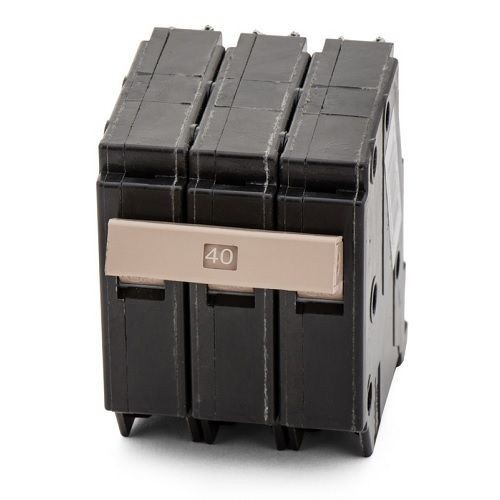

EATON CH340 Type CH Standard Circuit Breaker, 240 VAC, 40 A, 10 kA Interrupt, 3 Poles, Common/Thermal Magnetic Trip
EATON CH340 Type CH Standard Circuit Breaker, 240 VAC, 40 A, 10 kA Interrupt, 3 Poles, Common/Thermal Magnetic Trip
SKU: C-HCH340
Manufacturer Part Number: CH340
UPC: 782113102078
Documents
Features
- Notes: HACR rated, Three-Pole 240V Common Trip Requires Three 3/4-in Spaces
Specification
| Interrupt Rating | 10 |
|---|---|
| Mounting Type | Plug-On |
| Number Of Poles | 3 |
| Temperature Rating | 60 to 75 deg C |
| Type | Standard |
| Voltage Rating | 240 VAC |
| Wire Size | 14 to 6 AWG |
| Amperage Rating | 40 A |
| Enclosure Type | NEMA 1/3R |
| Dimensions | 2.2 in L x 3.1 in W x 2.7 in H |
| Standard & Approvals | UL File No. 489 |
| Trip Type | Common |
