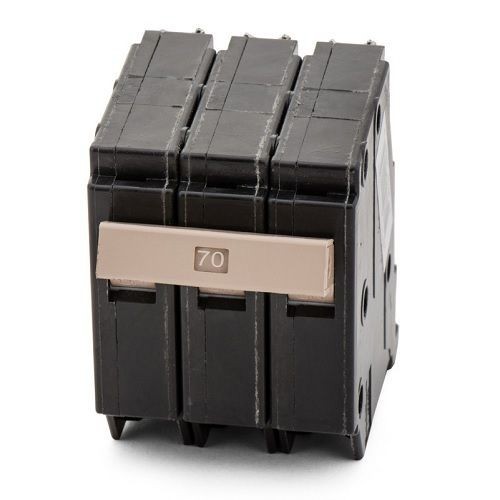

Cutler-Hammer CH370 Type CH Standard Molded Case Circuit Breaker, 240 VAC, 70 A, 10 kA, 3 Poles, Long Time/Instantaneous Trip
Cutler-Hammer CH370 Type CH Standard Molded Case Circuit Breaker, 240 VAC, 70 A, 10 kA, 3 Poles, Long Time/Instantaneous Trip
SKU: C-HCH370
Manufacturer Part Number: CH370
UPC: 782113102139
Short Description
Features
- Space-saving 3/4 in design accommodates more breakers per panel
- Tri-Drive screw accepts flat, Robertson or Phillips drivers, making it easier for electricians to install
- Single and two-pole breakers up to 50 A
- Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design
- Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks
- CH interiors feature 100% copper bus
- Cu/Al wire
- Three pole requires three 3/4 in (19.1 mm) space
Specification
| Interrupt Rating | 10 |
|---|---|
| Material | Bakelite |
| Mounting Type | Plug-On |
| Number Of Poles | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Actuator Type | 2-Position Handle |
| Amperage Rating | 70 A |
| Color | Black |
| Enclosure Type | NEMA 1/3R |
| Phase | 3 |
| Temperature Rating | 40 |
| Trip Type | Long Time/Instantaneous |
| Type | Type CH Standard |
| Voltage Rating | 240 V |
| Wire Size | 10 to 1/0 AWG |
| Application | Residential Loadcenters and Meter Breaker Panels, Light Commercial Distribution Panels, Pool Panels, Residential Transfer Switch Panels and Various OEM Applications |
| Standard & Approvals | UL File E8741 Listed, HACR Rating, Federal Specification W-C 375 b/Gen |
| Dimensions | 3-1/2 in H x 3/4 in W x 3-1/2 in D |
| Catalog ID | C-HCH370 |
