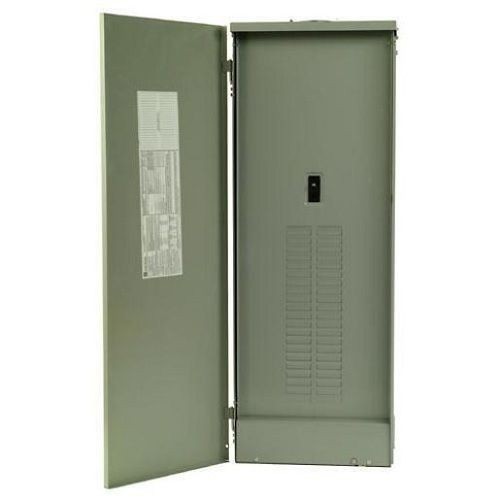

EATON CH42B3200R 3-Phase Standard Main Circuit Breaker Load Center, 208Y/120/240 VAC, 200 A, 42 Poles, 10 kA Interrupt

Selected EATON CH42B3200R 3-Phase Standard Main Circuit Breaker Load Center, 208Y/120/240 VAC, 200 A, 42 Poles, 10 kA Interrupt
EATON CH42B3200R 3-Phase Standard Main Circuit Breaker Load Center, 208Y/120/240 VAC, 200 A, 42 Poles, 10 kA Interrupt

Documents

Short Description

Eaton’s CH 3/4 in load centers enclose CH breakers for power distribution and circuit protection in residential and light commercial applications. Also called a breaker box, electrical box or even a fuse box, the main function is to take electricity supplied by the utility and distribute it throughout the home to feed lights and receptacles. They are used on services providing no more than 240 VAC and are available with bus rated 40-600A. Covers are available as surface, flush or combination.

Features

  • One-piece silver flash plated copper bus provides superior conductivity throughout the entire product line
  • Steel backpan provides positive, reliable mounting
  • CH 150-225 ampere main breakers are rated 25 kAIC providing contractors with the highest interrupting rating main breaker in the industry
  • Unique sandalwood finish provides an esthetically appealing, scratch resistant powder coating
  • CH breakers include an industry exclusive "trip to off" feature that allows a homeowner to easily identify a tripped circuit breaker
  • New mechanical flag feature on CH breakers for easy trip indication
  • Overhead feed
  • Copper bus and metallic enclosure
  • Bottom or top feed location
  • Insulated or bondable split neutral type
  • Copper Bus housing

Specification

Housing Material
Copper
Interrupt Rating
10 kA
Mounting Type
Surface
Number of Circuits
42
Number Of Poles
42
Number of Spaces
42
Minimum Order Qty
1
Order Interval
1
Video
https://youtu.be/rexdDTN9sfQ
Amperage Rating
200 A
Breaker Mounting
Plug-On
Breaker Type
CC
Catalog ID
C-HCH42B3200R
Dimensions
39 in L x 14.31 in W x 5.19 in H
Enclosure Box Size
L
Enclosure Type
NEMA 3R
Voltage Rating
208Y/120/240 VAC
Wiring Configuration
4-Wire
Application
Residential
Standard & Approvals
UL Listed
Wire Size
2/0 to 300 kcmil
Type
Three Phase Type CH
