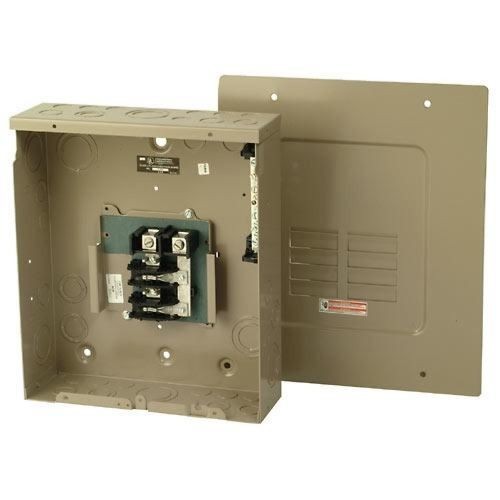

EATON CH8L125FP 1-Phase Main Lug Load Center, 120/240 VAC, 125 A, 16 Poles, 25 kA Interrupt
EATON CH8L125FP 1-Phase Main Lug Load Center, 120/240 VAC, 125 A, 16 Poles, 25 kA Interrupt
SKU: C-HCH8L125FP
Manufacturer Part Number: CH8L125FP
UPC: 782114190524
Documents
Features
- Copper bus material
- Metallic enclosure material
- Overhead or underground feed type
- Single phase
- Ground bar kits priced separately
- For 2/4 and 6/12 circuit loadcenters, use type GBK5 or GBK520 ground bar
- Ground bars mount to the left side wall of the enclosure for the 4/8, 6/12 and 8/16 circuit loadcenters
- Suitable for use as service equipment when a main breaker is used or when not more than six service disconnecting mains are provided and when not used as a lighting and appliance panelboard
- Insulated/bondable split neutral
- 3/4 in pole
Specification
| Interrupt Rating | 10 kA |
|---|---|
| Mounting Type | Flush |
| Number of Circuits | 8 |
| Number Of Poles | 16 |
| Number of Spaces | 8 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=1Z5-U-A4frU |
| Amperage Rating | 125 A |
| Breaker Type | CH |
| Bus Rating | 125 A |
| Catalog ID | C-HCH8L125FP |
| Dimensions | 13 in L x 11 in W x 3.69 in H |
| Enclosure Box Size | NEMA 7 |
| Enclosure Type | NEMA 1 |
| Voltage Rating | 120/240 VAC |
| Wire Size | 6 to 1/0 AWG |
| Wiring Configuration | 3-Wire |
| Standard & Approvals | UL File No. 67/50 |
