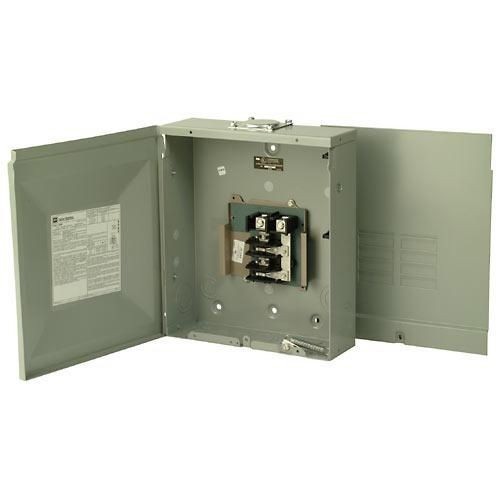

EATON CH8L125RP 1-Phase Main Lug Load Center, 120/208Y/240 VAC, 125 A, 16 Poles, 25 kA Interrupt
EATON CH8L125RP 1-Phase Main Lug Load Center, 120/208Y/240 VAC, 125 A, 16 Poles, 25 kA Interrupt
SKU: C-HCH8L125RP
Manufacturer Part Number: CH8L125RP
UPC: 782114190548
Documents
Features
- Copper bus material
- Metallic enclosure material
- Overhead feed type
- Single phase
- Ground bar kits priced separately
- For 2/4 and 6/12 circuit loadcenters, use type GBK5 or GBK520 ground bar
- Ground bars mount to the left side wall of the enclosure for the 4/8, 6/12 and 8/16 circuit loadcenters
- Neutral/ground holes (6) 14 to 6 AWG and (3) 14 to 2/0 AWG Cu/Al
- Suitable for use as service equipment when not more than two service disconnecting mains are provided or when not more than six service disconnecting mains are provided and when not used as a lighting and appliance panelboard
- Insulated/bondable split neutral
- 3/4 in pole
Specification
| Interrupt Rating | 10 |
|---|---|
| Mounting Type | Surface |
| Number of Circuits | 8 |
| Number Of Poles | 16 |
| Number of Spaces | 8 |
| Voltage Rating | 120/208Y/240 VAC |
| Wire Size | 6 to 1/0 AWG |
| Wiring Configuration | 3-Wire |
| Standard & Approvals | UL File No. 67/50 |
| Amperage Rating | 125 A |
| Dimensions | 13 in L x 11 in W x 3.69 in H |
| Breaker Type | CH |
| Bus Rating | 125 |
| Enclosure Box Size | NEMA 7R |
| Enclosure Type | NEMA 3R |
| Includes | Cover |
